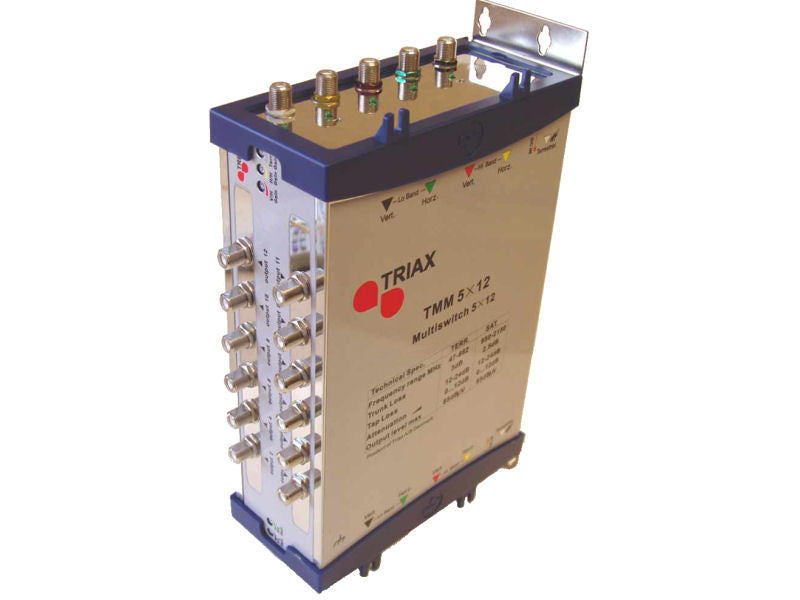

TRIAX TMM 5x12 CASCADE Multiswitch
- Product SKU: 305395
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|IRS|Triax TMM - 5 Input
5 Inputs, 5 Through Outputs
- Modular construction for simple and flexible installation
- Level controls on each Multiswitch Input
- Built in Amplification
- Terrestrial Amplifiers powered via Trunk Line
- Colour coded Trunk Connections
- Supplied with Output Earth Bonding Bars
Frequency Range (MHz): TERR 47-862, SAT 950-2150
Inputs: 5
Through Outputs: 5
Multiswitch Outputs: 12
Connectors: F-Type
Trunk Loss (dB): TERR 3.0, SAT 2.5
Multiswitch Loss (dB): TERR 12, SAT 12
Output Level Control: TERR 0 to 12, SAT 0 to 12
Max. Output Level (dBuV): TERR (IMA3 -60dB) 85, SAT (IMA3 -35dB) 95
Terrestrial Current (mA): 95
Power Supply: Satellite supplied by Receiver, Terrestrial supplied from Terrestrial Trunk Line)
Dimensions (mm): 270 x 170 x 73.4
