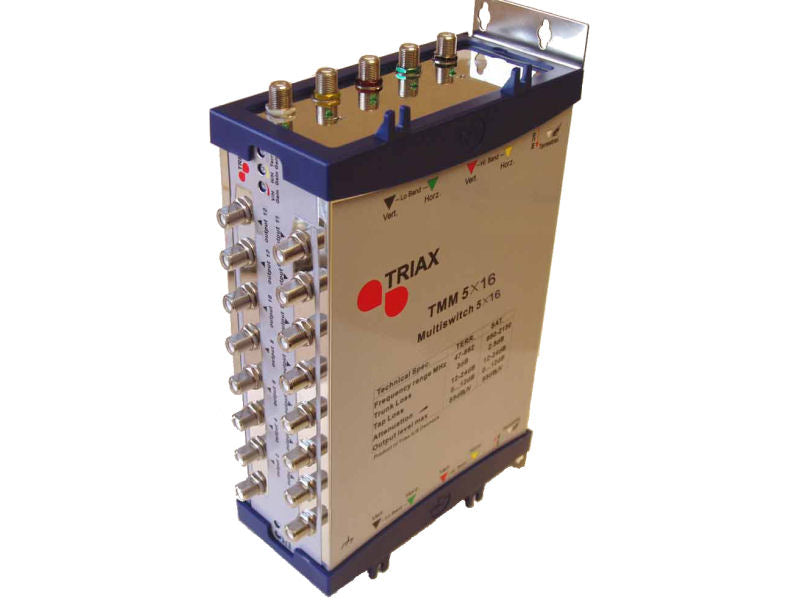

TRIAX TMM 5x16 CASCADE Multiswitch

Available: In Stock
Wishlist Compare
£309.00

5 Inputs, 5 Through Outputs

  • Modular construction for simple and flexible installation
  • Level controls on each Multiswitch Input
  • Built in Amplification
  • Terrestrial Amplifiers powered via Trunk Line
  • Colour coded Trunk Connections
  • Supplied with Output Earth Bonding Bars

Frequency Range (MHz): TERR 47-862, SAT 950-2150
Inputs: 5
Through Outputs: 5
Multiswitch Outputs: 16
Connectors: F-Type
Trunk Loss (dB): TERR 3.0, SAT 2.5
Multiswitch Loss (dB): TERR 12, SAT 12
Output Level Control: TERR 0 to 12, SAT 0 to 12
Max. Output Level (dBuV): TERR (IMA3 -60dB) 85, SAT (IMA3 -35dB) 95
Terrestrial Current (mA): 95
Power Supply: Satellite supplied by Receiver, Terrestrial supplied from Terrestrial Trunk Line)
Dimensions (mm): 270 x 170 x 73.4
