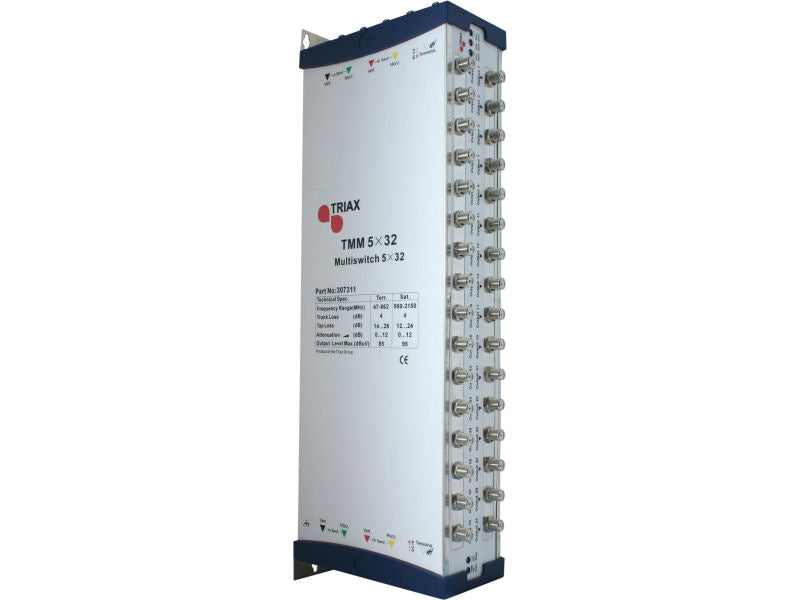

TRIAX TMM 5x32 CASCADE Multiswitch
- Product SKU: 307311
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|IRS|Triax TMM - 5 Input
5 Inputs, 5 Through Outputs
- Modular construction for simple and flexible installation
- Level controls on each Multiswitch Input
- Built in Amplification
- Terrestrial Amplifiers powered via Trunk Line
- Colour coded Trunk Connections
- Supplied with Output Earth Bonding Bars
Frequency Range (MHz): 47-2150
Inputs: 4 SAT + 1 TERR
Through Outputs: 4 SAT + 1 TERR
Multiswitch Outputs: 32
Connectors: F-Type
Trunk Loss (dB): TERR 4, SAT 4
Tap Loss (dB): TERR 14, SAT 14
Output Level Control: TERR 0 to 12, SAT 0 to 12
Max. Output Level (dBuV): TERR (IMA3 -60dB) 85, SAT (IMA3 -35dB) 95
Terrestrial Current (mA): 160
Power Supply: Satellite supplied by Receiver, Terrestrial supplied from Terrestrial Trunk Line)
Dimensions (mm): 270x170x111
