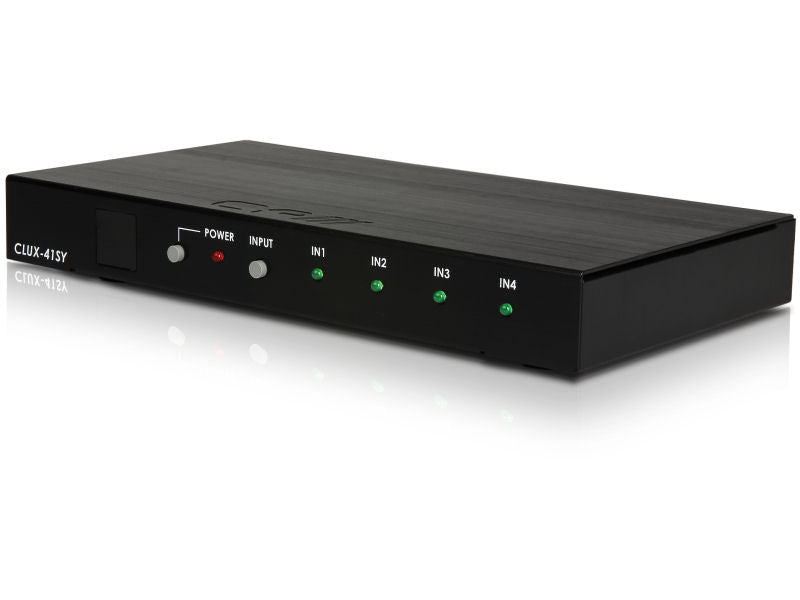

CYP Elector v1.3 HDMI® 4x1 Switcher
- Product SKU: EL-41SY
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|HDMI Switchers - CYP
HDMI® 4x1 Switcher
Each switcher in the Elector Range is compatible to v1.3 HDMI specifications, supporting up to 16 bit Deep Colour together with High Definition audio.
Features:
- v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.
- HDMI 4-way Switcher.
- Resolutions Supported:
PC - VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920x1200). HDTV - 480i, 576i, 480p, 576p, 720p, 1080i, 1080p and 1080p24fps.
- High Definition Audio supported - Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
- Auto signal enhancement feature can improve signal quality after long distance transmission.
- IR Remote Control.
- Supports 'Deep Colour' (10, 12 and 16 bit).
- LED indicators.
- Supports 3D signals
Specification:
Inputs: 4 x HDMI female ports
Output: 1 x HDMI female port
Power: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 201mm (W) x 104mm (D) x 25mm (H)
Gross Weight 640g
Net. Weight: 420g
HDMI® 4x1 Switcher
Each switcher in the Elector Range is compatible to v1.3 HDMI specifications, supporting up to 16 bit Deep Colour together with High Definition audio.
Features:
- v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.
- HDMI 4-way Switcher.
- Resolutions Supported:
PC - VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920x1200). HDTV - 480i, 576i, 480p, 576p, 720p, 1080i, 1080p and 1080p24fps.
- High Definition Audio supported - Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
- Auto signal enhancement feature can improve signal quality after long distance transmission.
- IR Remote Control.
- Supports 'Deep Colour' (10, 12 and 16 bit).
- LED indicators.
- Supports 3D signals
Specification:
Inputs: 4 x HDMI female ports
Output: 1 x HDMI female port
Power: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 201mm (W) x 104mm (D) x 25mm (H)
Gross Weight 640g
Net. Weight: 420g
