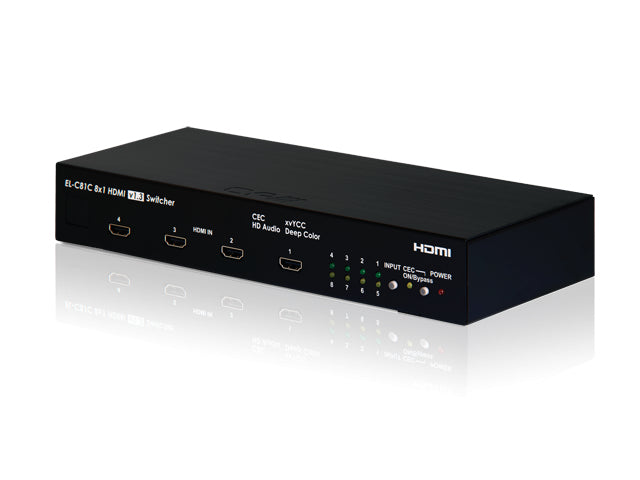

CYP Elector v1.3 HDMI® 8x1 Switcher
- Product SKU: EL-C81C
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|HDMI Switchers - CYP
Each switcher in the Elector Range is compatible to v1.3 HDMI specifications, supporting up to 16 bit Deep Colour together with High Definition audio. This CEC command function switcher allows the latest v1.3 HDMI equipment to Auto-Switch on source power up.
Features:
- v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.
- HDMI 8-Way Switcher with Consumer Electronics Control (CEC).
- Resolutions Supported: PC - VGA, SVGA, XGA, SXGA, UXGA. HDTV - 480i, 576i, 480p, 576p, 720p, 1080i, 1080p and 1080p24fps.
- High Definition Audio supported - Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
- Auto signal enhancement feature can improve signal quality after long distance transmission.
- RS-232 and IR Remote Control.
- CEC Auto switch control function.
- Supports 'Deep Colour' (10 and 12 bit). Supports xvYCC.
Specification:
Inputs: 8 x HDMI female ports + 1 x RS-232
Output: 1 x HDMI female port
Power: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 280mm (W) x 115mm (D) x 45mm (H)
Gross Weight: 760g
Net. Weight: 540g
