CYP Xpressview™ v1.4 HDMI® 4x1 Switcher

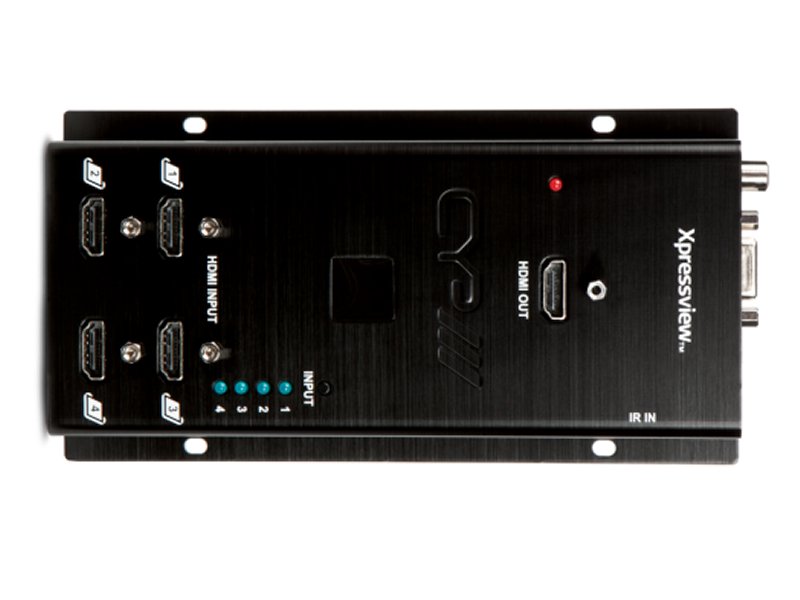

The EL-41WX is an advanced wall mountable 4-Way Switcher with v1.4 HDMI Xpressview™ technology, which improves source switching time to less than 1 second, and includes Audio Return Channel (ARC) via HDMI. The system supports all 3D TV formats in addition to all HDTV formats up to 1080p 12-bit Deep Colour. This solution also supports the HDCP repeater function and also includes an IR remote control.

Features:

• HDMI 1.4, HDCP 1.4 and CEC1.4 compliant
• HDMI 1.4 support: Audio Return Channel (ARC), 3D TV support, CEC1.4
• Fast switching on all HDMI input ports
• On Screen Display (OSD) with system info and controls
• Supports HDCP repeater
• Supports Deep Colour (10 and 12bit)
• Resolution supported: : 480i to 1080p plus 1080p24fps
• HD audio supported: : PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, DD+, D-TrueHD, DTS-HD

Specification:

Inputs: 4x HDMI [4x HDMI Uncompressed AV and Data], 1x 9pin Dsub [1x RS-232 Data], 1x Stereo mini-jack [1x Infra Red Receiver], 1x USB Mini B [1x USB Power]
Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x RCA [1x COAX 2 Channel LPCM]
Power: 5V/1.2A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 95mm (W) x 30mm (D) x 185mm (H)
Gross Weight: 340g
Net. Weight: 580g
