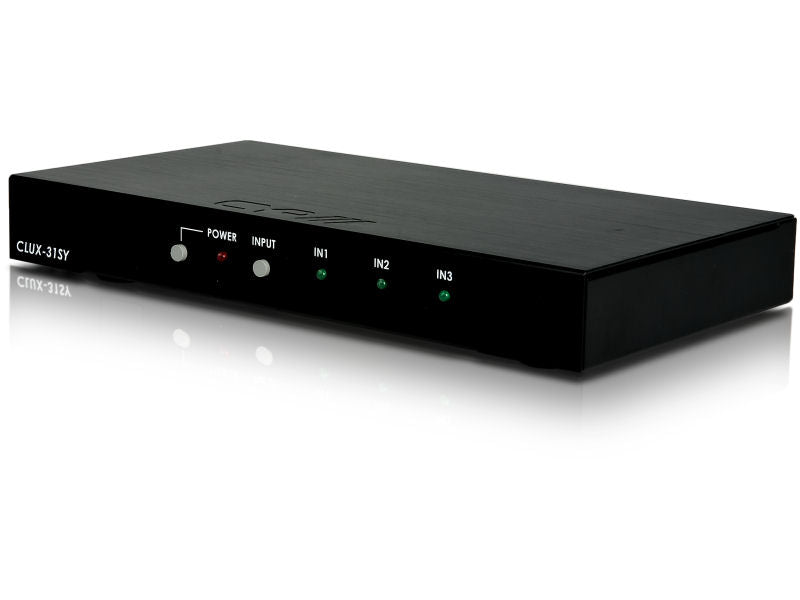

CYP Elector v1.3 HDMI® 3x1 Switcher
- Product SKU: EL-31SY
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|HDMI Switchers - CYP
Each switcher in the Elector Range is compatible to v1.3 HDMI specifications, supporting up to 16 bit Deep Colour together with High Definition audio.
Features:
- v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.
- HDMI 3-way Switcher.
- LED Indicators.
- Supports resolutions
PC: VGA, up to UXGA (1600x1200) and (1920x1200)
HDTV: 480i, up to 1080p 50/60Htz
- High Definition Audio supported - Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
- Auto signal enhancement feature can improve signal quality after long distance transmission.
- IR Remote Control.
- Supports 'Deep Colour' (10, 12 and 16 bit).
- LED indicators.
- Supports 3D signals
Specification:
Inputs: 3 x HDMI female ports
Output: 1 x HDMI female port
Power: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 200mm (W) x 105mm (D) x 32mm (H)
Gross Weight: 640g
Net. Weight: 420g
