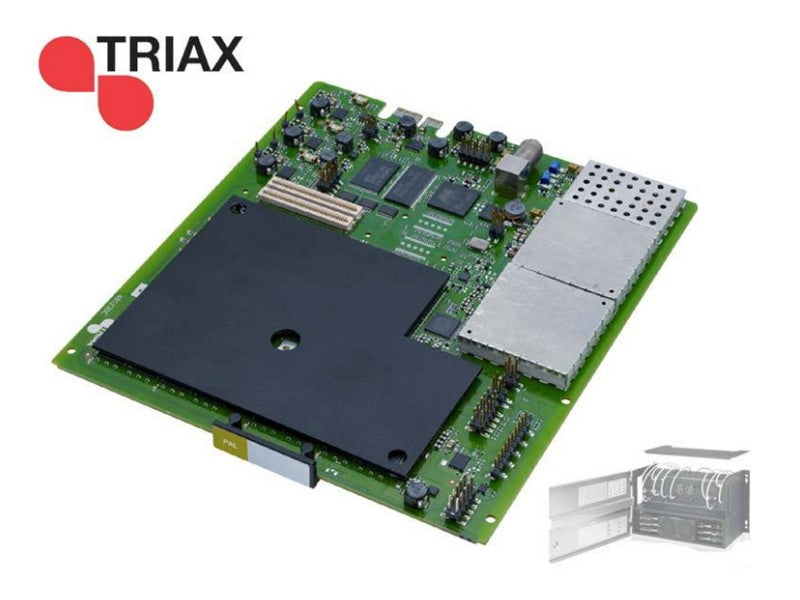

TRIAX TDX PAL Output Module - Quad
- Product SKU: 492050
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|MATV / SMATV|Triax TDX Modular Headend
PAL Output Module - Quad
Type - Modulator
TV-norm Pal/Secam B/G, I, L, D/K
System VSB VHF/UHF mono A2 Nicam
Output frequency range (MHz) 47-862
Picture carrier stability (kHz) < +/-30
Spurious signals ref. picture carrier (system 24 channels) (dB) > -60
Output level (system) (dBµV) 103
Output level adjustment (dB) +3 / -17 (0,5dB step)
Output impedance (Ohm) 75
Return loss (dB) >10
Differential gain (%) <8
Differential phase (deg.) <8
Chrominance / luminance delay (ns) <80
Video carrier to noise (dB) 57
CI slots 0
