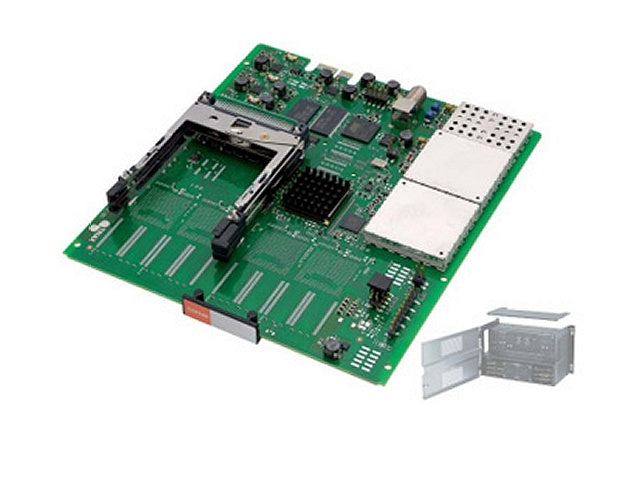

TRIAX TDX COFDM Output Module-Quad with CA
- Product SKU: 492061
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|MATV / SMATV|Triax TDX Modular Headend
TRIAX TDX COFDM Output Module-Quad with CA
It is possible to create your own bouquets of services/TV programs, available in the TDX Pool, and put them together in a COFDM data stream. Depending on the bandwidth of each service it is possible to mix all the services and use the total bandwidth in an optimal way. The web configurator ensures that you are not overloading the bandwidth and are creating problems with pictures on the televisions. Each of the output modules can be delivered with 2 CI-slots
Specifications
- Output frequency range: (MHz) 50,5-858
- Spurious signals: (dB) > -60
- QAM modes: 64QAM, 16QAM, QPSK
- Bandwidth: (MHz) 6, 7 or 8
- Carriers Supported: 2K, 8K
- Guard Interval: 1/32, 1/16, 1/8, 1/4
- Error Correction:
- Viterbi FEC: 1/2, 2/3, 3/4, 5/6, 7/8
- Reed Solomon: 204 byte mode
- Output level (system): (dBµV) 93
- Output level adjustment: (dB) +3 / -17 (0,5dB step)
- CI slots: 0/2
