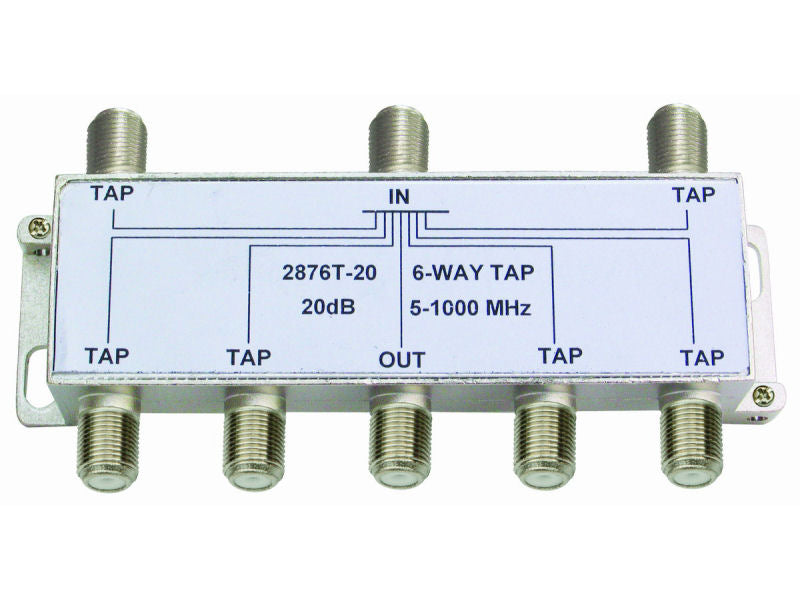

INTERNAL 6/20 'F' Type Tap (5-1000MHz)

Available: In Stock
Wishlist Compare
£7.99

6/20 F TYPE TAP Frequency range 5-1000MHZ. One output port to input port DC Pass. Fully screened RF shielded Zink Die-Cast housing with Nickel Plating and Earth Terminal built in. All Ports are 75ohm 'F' type with low Insertion loss. Screening (dB) 40-470 MHz: >75 470-1000 MHz: >65 Tap Loss (dB) 5-470 MHz: 20 +/- 1.0 470-1000 MHz: 20 +/- 1.0 Through Loss (dB) 5-40 MHz: 1.2 40-470 MHz: 1.5 470-1000 MHz: 2.0 Isolation Out-Tap (dB) 5-40 MHz: 35 40-470 MHz: 30 470-1000 MHz: 27 Isolation Tap-Tap (dB) 5-40 MHz: 25 40-470 MHz: 25 470-1000 MHz: 25 RETURN LOSS (dB) 5-40 MHz: 22 40-470 MHz: 21 470-1000 MHz: 16
