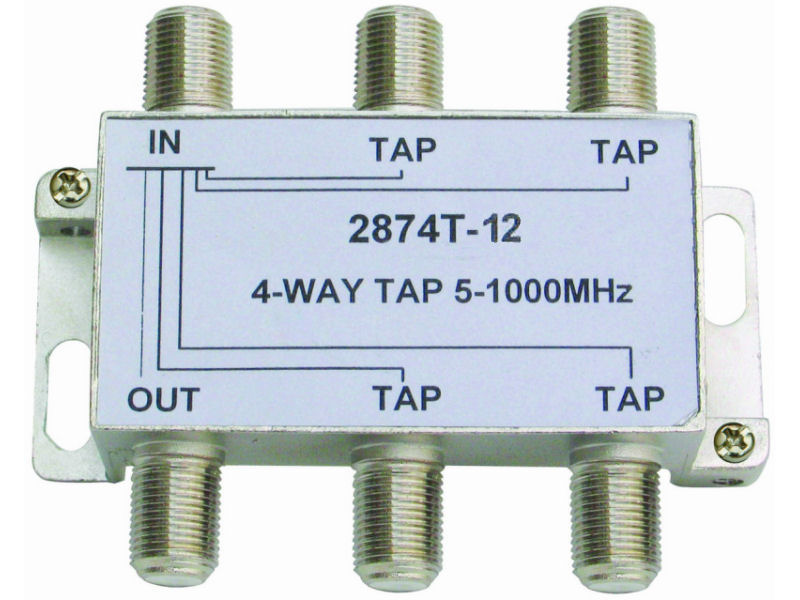

INTERNAL 4/12 'F' Type Tap (5-1000MHz)
- Product SKU: 2874T-12
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|MATV / SMATV|'F' Taps (5-1000MHz)
4/12 F TYPE TAP Frequency range 5-1000MHZ. One output port to input port DC Pass. Fully screened RF shielded Zink Die-Cast housing with Nickel Plating and Earth Terminal built in. All Ports are 75ohm 'F' type with low Insertion loss. Screening (dB) 40-470 MHz: >75 470-1000 MHz: >65 Tap Loss (dB) 5-470 MHz: 12 +/- 1.0 470-1000 MHz: 12 +/- 1.0 Through Loss (dB) 5-40 MHz: 3.2 40-470 MHz: 3.4 470-1000 MHz: 4.2 Isolation Out-Tap (dB) 5-40 MHz: 27 40-470 MHz: 25 470-1000 MHz: 22 Isolation Tap-Tap (dB) 5-40 MHz: 28 40-470 MHz: 28 470-1000 MHz: 25 RETURN LOSS (dB) 5-40 MHz: 18 40-470 MHz: 22 470-1000 MHz: 17
