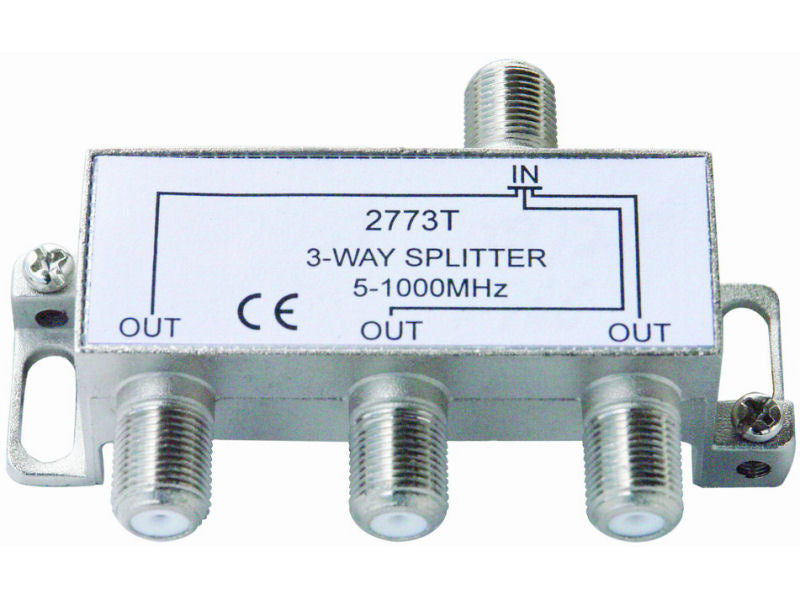

Internal 3 Way 'F' Splitter (5-1000mhz)
- Product SKU: 2773T
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|MATV / SMATV|'F' Splitters (5-1000 MHz)
3 WAY F TYPE SPLITTER Frequency range 5-1000MHZ.Fully screened RF shielded Zink Die-Cast housing with Nickel Plating and Earth Terminal built in. All Ports are 75ohm 'F' type with low Insertion loss. Screening (dB) 40-470 MHz: >75 470-1000 MHz: >65 Insertion Loss (dB) 5-40 MHz: 5.6 40-470 MHz: 5.8 470-860 MHz: 6.2 860-1000 MHz: 6.5 Mutual Isolation (dB) 5-40 MHz: 25 40-470 MHz: 30 470-860 MHz: 27 860-1000 MHz: 25 Return Loss (dB) 5-40 MHz: 20 40-470 MHz: 21 470-860 MHz: 18 860-1000 MHz: 18
