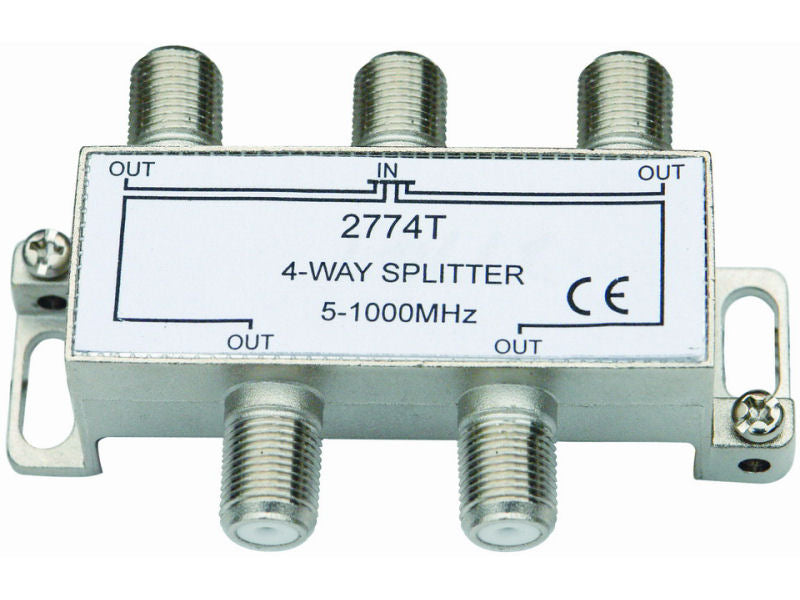

INTERNAL 4 Way 'F' Splitter (5-1000MHz)
INTERNAL 4 Way 'F' Splitter (5-1000MHz)
Available:
In Stock
Wishlist
Compare
- Product SKU: 2774T
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|MATV / SMATV|'F' Splitters (5-1000 MHz)
£3.99
Zinc Die-Cast housing with Nickel Plating
- F-(f) connector
- 75 ohm
- Grounding terminal provided
- Two screws attached
- Low insertion loss, High return loss and isolation
- Frequency range 5-1000MHZ
Screening factor
30-300 MHz > 75dB
300-470 MHz > 75dB
470-1000 MHz > 65dB
Insertion Loss IN-OUT (dB)
5-40 MHz: < 6.7
40-470 MHz: < 7.5
470-1000 MHz: < 8.8
Insertion Loss OUT-OUT (dB)
5-40 MHz: > 25
40-470 MHz: > 25
470-1000 MHz: > 23
VSWR IN and OUT
5-40 MHz: 1.228
40-470 MHz: 1.222
470-1000 MHz: 1.337
