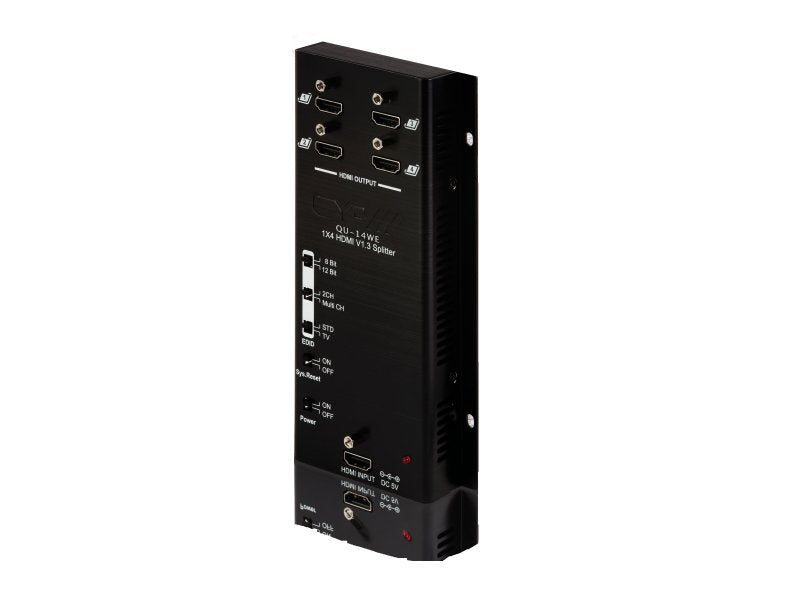

CYP Quantum v1.3 HDMI® 1x4 Splitter

Available: In Stock
Wishlist Compare
£169.99

Each splitter in the Quantum Distribution Amplifier Series is compatible to v1.3 HDMI specifications, supporting 'Deep Colour' together with High Definition Audio. Each buffered output can run 1080p up to 20 metres and can also be cascaded. The QU-14WE has mounting lugs cleverly integrated into the casing for easy horizontal or vertical mounting.

Features:

  • v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.
  • HDMI 1 to 4 Mountable Splitter.
  • Resolutions supported: PC - VGA to UXGA; HDTV - 480i to 1080p plus 1080p24fps.
  • High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
  • Auto signal amplification and equalisation improves signal transmission distances.
  • Supports CEC bypass.
  • Supports ‘Deep Colour’ (10 and 12 bit).
  • Selectable EDID settings - TV (downstream) and STD (fixed).
  • System reset function switch generate a command every 10 minutes to the connected displays which resets them to the correct HDMI input.
  • Supports 3D signals

Specification:

Inputs: 1 x HDMI Female Port
Outputs: 4 x HDMI Female Ports
Power: 5V/6A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 94mm (W) x 187mm (D) x 32mm (H)
Weight: 560g
Weight: 460g
