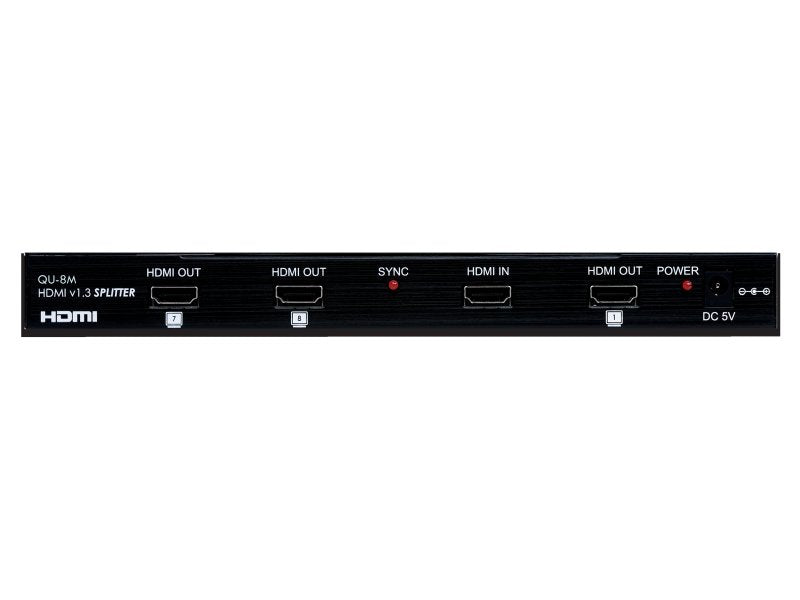

CYP Quantum v1.3 HDMI® 1x8 Splitter
- Product SKU: QU-18S
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|HDMI Splitters - CYP
Each splitter in the Quantum Distribution Amplifier Series is compatible to v1.3 HDMI specifications, supporting 'Deep Colour' together with High Definition Audio. Each buffered output can run 1080p up to 20 metres and can also be cascaded.
Features:
- v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.
- HDMI 1 to 8 Splitter.
- Resolutions supported: PC - VGA to UXGA; HDTV - 480i to 1080p plus 1080p24fps.
- High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
- Auto signal amplification and equalisation improves signal transmission distances.
- Supports CEC bypass.
- Supports ‘Deep Colour’ (10, and 12).
- Selectable EDID settings - TV (downstream) and STD (fixed).
- Power, HDMI/DVI, HDCP and SYNC plus independent output LED's indicator.
- Supports 3D signals.
Specification:
Input: 1 x HDMI female port
Outputs: 8 HDMI female ports
Power: 5V DC/6A (US/EU standards, CE/FCC/UL certified)
Dimensions: 435mm (W) x 160mm (D) x 45mm (H)
Gross Weight: 2020g
Net. Weight: 1750g
