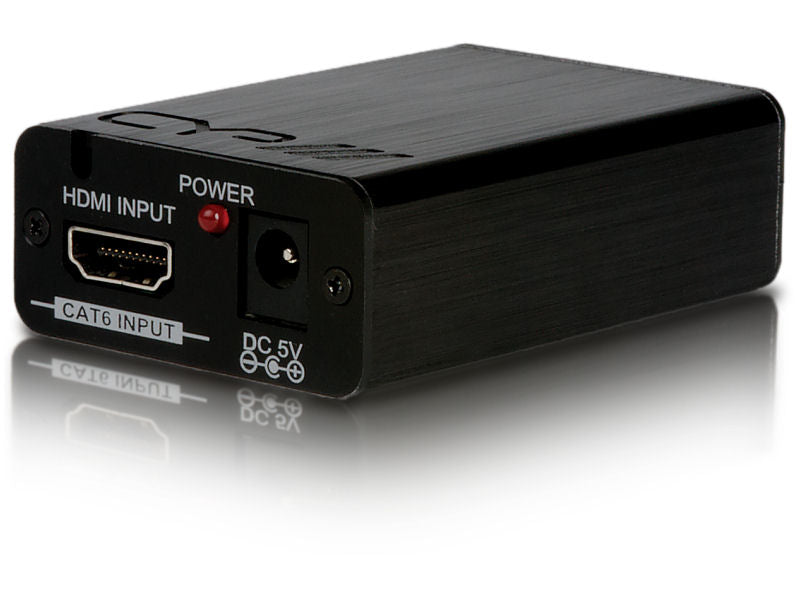

CYP Puma v1.3 HDMI Over x2 CAT5e *KIT*

CYP Puma v1.3 HDMI® Over x2 CAT5e *KIT*

All the PUMA, HDMI over CAT5e/6 transmitters and receivers are the perfect solution to extend HDMI signals via CAT cabling up to 40m. For even longer distances, also use the PU-108 repeater, which can be cascaded. The PU-1103 receiver unit does not require local power (power is received through the DDC CAT5e/6 cable from the transmitter).

Features:

• v1.3 HDMI, HDCP 1.1 and DVI 1.1 compliant.
• HDMI over CAT6 Extender Set.
• Resolutions supported: PC - VGA to WXGA; HDTV - 480i to 1080p plus 1080p24fps.
• High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
• Compatible with CAT-5E and CAT-6 cables. CAT-6 is recommended for better performance.
• Supports CEC functions.
• Supports ‘Deep Colour’ (10, and 12 bit).
• Equalises and recovers incoming TMDS data before re-transmitting to ensure optimum signal quality.
• Supports xvYCC.
• Supports 3D signals.

Specification:

Inputs: Transmitter: 1 x HDMI female port. Receiver: 1 x CAT5e/6 for Video, 1 x CAT5e/6 for DDC.
Outputs: Transmitter: 1 x CAT5e/6 for Video, 1 x CAT5e/6 for DDC. Receiver: 1 x HDMI female port
Power: 1 x 5V/2.6A DC (US/EU Standards, CE/FCC/UL Certified)
Dimensions: 50mm (W) x 72mm (D) x 23mm (H) each
Gross Weight: 540g
Net. Weight: 80g (each)
