CYP Puma v1.3 HDMI Over x2 CAT5e RCV.
- Product SKU: PU-1106RX
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|HDMI Over UTP - CYP
CYP Puma v1.3 HDMI® Over x2 CAT5e RCV.
Receiver ONLY see PU-1106TX for Transmitter or PU-1106 for Complete Kit
All the PUMA, HDMI over CAT5e/6 transmitters and receivers are the perfect solution to extend HDMI signals via CAT cabling up to 40m. For even longer distances, use the PU-108 repeater, these can also be cascaded. The PU-1106 also allows you to use your existing Remote Control to control your device with the included IR Receiver and Blaster.
Features:
- v1.3 HDMI, HDCP 1.1 and DVI 1.1 compliant.
- HDMI over CAT6 Extender Set.
- Resolutions supported: PC - VGA to WXGA; HDTV - 480i to 1080p plus 1080p24fps.
- High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
- Compatible with CAT-5E and CAT-6 cables. CAT-6 is recommended for better performance.
- Supports CEC functions and IR blaster.
- Supports ‘Deep Colour’ (10, and 12 bit) - Transmission distances may be reduced at higher colour depths.
- Equalises and recovers incoming TMDS data before re-transmitting to ensure optimum signal quality.
- Supports xvYCC.
Specification:
Inputs: Receiver: 2 x CAT5e/6, 1 x IR jack

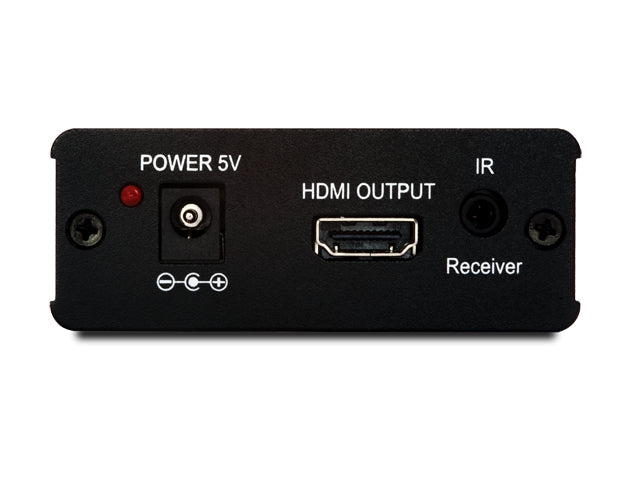

Outputs: Receiver: 1x HDMI female port, 1x IR jack.
Power: 1 x 5V/2.6A DC (US/EU Standards, CE/FCC/UL Certified)
Dimensions: 80mm (W) x 72mm (D) x 30mm (H)
Gross Weight: 920g
Net. Weight: 140g
