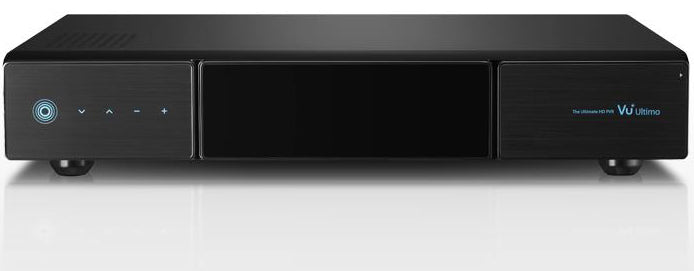

Vu+ Ultimo Main features
• 400 Mhz processor (BCM 7413)
• 10/100 MBit compatible Ethernet Interface
• HDMI Connection
• 1 Fixed DVB-S/S2 tuner and 2 x Plug & Play tuner DVB-S2/C/T
• WIFI USB dongle 300 Mb
• Plug & Play support for 2.5" and 3.5" SATA hard drive
• Big graphic display 256x64 pixel VFD
Technical Data:
Broadcom 400MHz MIPS processor (BCM7413)
1GB Flash
512MB Ram
Front Panel
2 x Smart Card slot
2 x Common Interface
1 x USB 2.0
Key 5 buttons (standby, volume + / -, Ch + / -)
Large Graphic VFD display type (256 × 64) pixels
Rear Panel
1 x Fixed Tuner, 2 x Pluggable Tuner Slots (DVB-S2/C/T)
1 x TV Scart Connection
1 x RCA Video output (composite)
Video output (component) YPbPr
1 x HDMI Video / Audio output (digital)
2 x RCA Audio output (analogue)
Audio output (digital) standard optical (SPDIF)
2 x USB 2.0 goldwafers.com
1 x Ethernet
1 x RS 232
FAN Control Automatic
1 x e-SATA
Power
Main range 100-250/50-60 V / HZ
Power consumtion
(Max / type. Operation / standby) 60/25/1 W
RF
RF range 47-864 MHz
FEC, de-multiplexed DVB-S2 / DVB-C / DVB-T standard
Video
CCIR 601 video resolution (720 × 576 lines), 576p, 720p, 1080i
Video decoding MPEG-2, MPEG-4 compatible
Input data rate 2-45 Msymb / s
S / N> 53dB
Audio
Decoding AC3, MPEG-4 (AAC-HE), MPEG 1, Layer 1,2 and 3
Sampling rate 32/4.1/48KHz
S / N> 65dB
LNB
LNB supply (Hor / vert.) 14/18, max. 400 V / mA
Control 22KHz signal, ToneBurst, DiSEqC 1.0/1.1/1.2, USAL
General
Dimensions (WxHxD) 380 x 60 x 290mm
Weight 3.0 Kg
Universal Remote Remote / QWERTY keyboard
