VISION V4 Amp 4 x Sat DC

Add Your Review
Available: In Stock
Wishlist Compare
£48.99

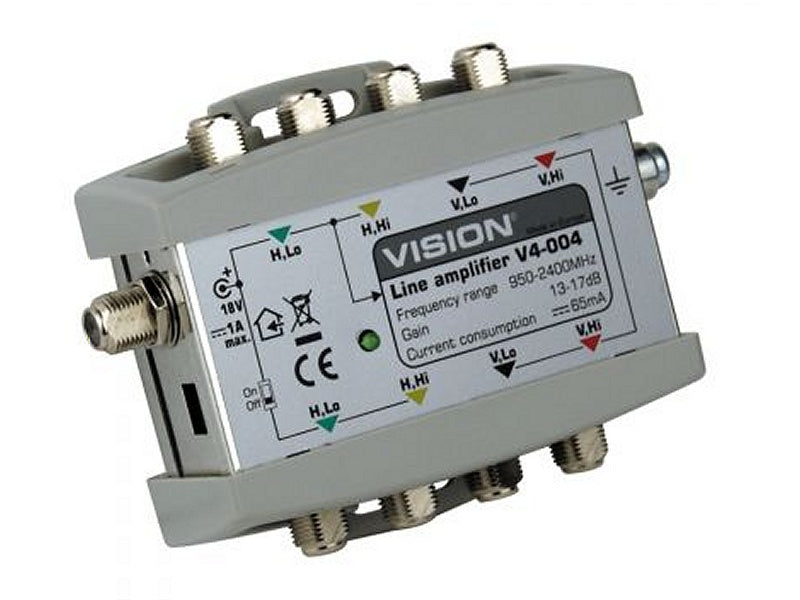

VISION V4 Amp 4 x Sat DC Line powered low cost satellite amplifier. Very small size. High performance for long cable lengths. Entirely receiver powered. No landlord supply required. Up to 8 switches can be cascaded together, totalling maximum 32 receiver powered points per system. For MATV upgrade work to reliably add satellite at minimum cost and very little time. Thousands already installed in these configurations. Model: V4-004 Input: 950-2400 MHz Gain: 13 to 17dB Gain slope correction 950-2400MHz: +4dB Input isolation: >30dB Noise figure (typical): <10dB Maximum output level*: 106dBµV Maximum input level*: 89dBµV DC pass: 18V/1.0A Power consumption from H lines or Auxiliary input: 12V to 18V/65mA Operating temperature: -20°C to +50°C Dimensions inc fixing lugs: 94mm x 76mm x 34mm Weight: 0.16kg *Maximum levels to IMD3=35dB (EN50083-3): *
