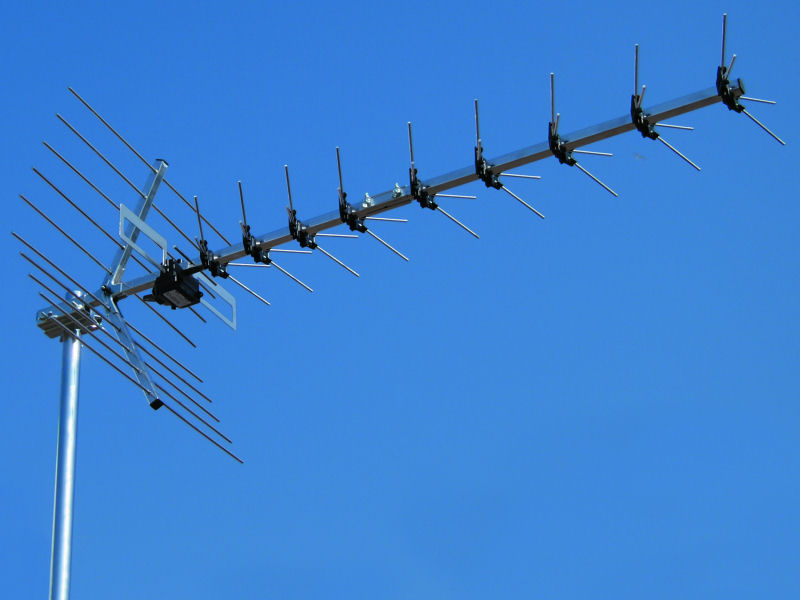

The VISION V10-48LF is a 4G-800 48 Element UHFHigh Gain Aerial for Digital TV.
- Tuned 470-790MHz (Ch21 - 60) and filtered to reject 4G-800
- High Gain and Directivity with large reflector
- Wire elements for low wind-loading
- 18mm boom section for strength and rigidity
- F-Connector Supermatch balun
- Part pre-assembled for "No-tools" assembly
Total no of Elements: 48 inc resonator, dipole, directors reflector
No of Directors: 9 bays of 4
Reflector Elements: 10
Balun: Vision Printed Circuit Supermatch Balun with 4G-800 filter
Junction Box: F female connector mounted on pcb balun in clamshell ventilated weather-proof ABS moulding with cable entry grommet
Forward Gain (peak): 11.7dBd / 13.85dBi
Frequency range: Wideband 470 - 790MHz : UHF Ch21 - 60 : Stop-band 791 -900MHz
Gain at 4G-800 LTE band measured at 830MHz: -9dB (-19.0dB lower than Ch60)
Acceptance Angle (1/2 power beam-width -3dB): ±9 degrees at 790MHz / ±15 degrees at 630MHz
Front / Back Ratio at 630MHz (mid-band): >26dB
Cross Polar Rejection (typical): >-20dB
Weight kg: 1.6
Wind Load @ 100kph: 6.5kg (58.5N)
Dimension L x W x H: 1260mm x 550mm x 480mm
Boom sizes: 18mm x 18mm aluminium central and reflector boom. 2 piece boom with steel coupler
Element material: 5mm reflector and 4mm directors dia aluminium wire
Construction Material: Magnesium aluminium alloy for high strength and corrosion resistance
Finish: Cleaned, bright and polished aluminium
