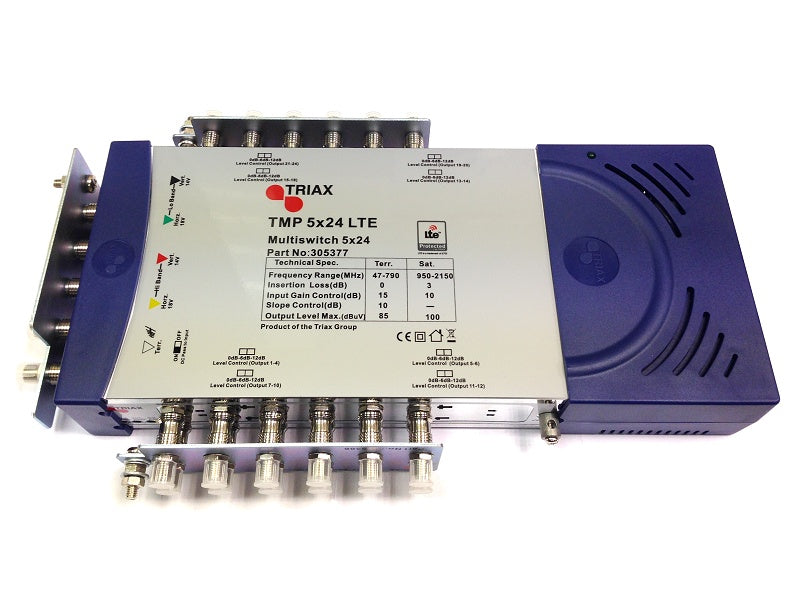

- LTE
- Compact design
- Signal level controls on all inputs
- Colour coded connections
- High Performance Switch Mode Power Supply
- Compatible with the specifications as laid down in the document 'SKY Homes - Specification for an Integrated Reception System'
Frequency Range (MHz): Terrestrial 47-862, Satellite 950-2150
Inputs: 5
Outputs: 24
Insertion Loss (dB): Terrestrial 0, Satellite 0
Input Gain Control (dB): Terrestrial 15, Satellite 10
Slope Control (dB): Terrestrial 10
Output Level Control (dB): Long cable 0, Medium Cable 6, Short Cable 12
Isolation (dB): Horiz/Vert 30, Terr-Sat 30, Sat-Terr 30, Out/Out-Terrestrial 30, Out/Out-Satellite 30
Input Return Loss (dB): Terrestrial 10, Satellite 10
Output Return Loss (dB): Terrestrial 8, Satellite 8
Output Level (dBuV): Terrestrial (IMA3-60dB) 85, Satellite (IMA3-35dB) 100
Line Power Voltage (V) (Switched Terrestrial): 12
Line Power Current (mA) (Switched Terrestrial): 50
Switching Commands: 13V, 18V, 13V 22kHz, 18V 22kHz
Switched Mode Power Supply: 180-264 Vac, 47-63Hz / 18VDC, 1.5A
LNB Current, Max (mA): 1000
Dimensions (mm) (L x W x H): 382x170x56
