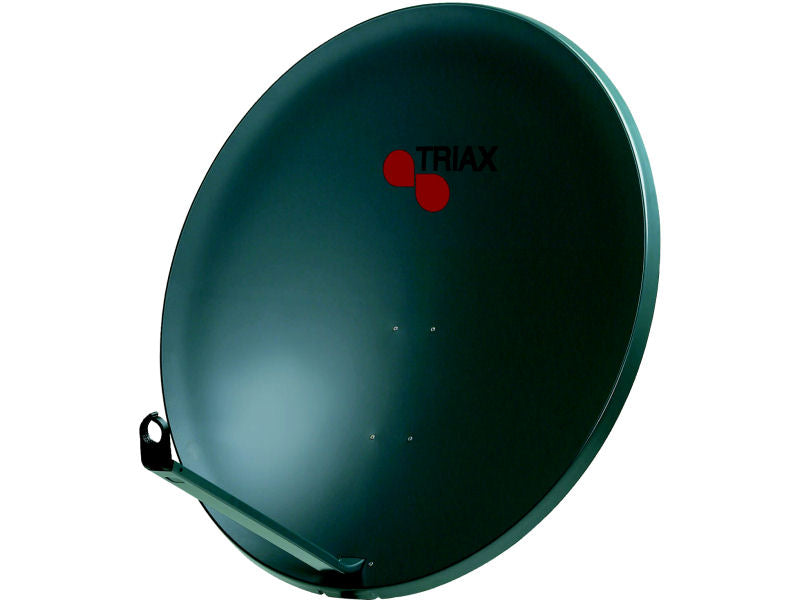

TD dishes are manufactured according to Triax's quality standards with precision tools and robot technology ensuring absolute uniform and optimum geometry for perfect signal reception.
Their precise-setting-scale elevation bracket is a patented solution which has set the standard for easy and quick installation of dishes.
Pole mounted dish, for wall mount a suitable bracket will be required, compatible with TRIAX's Multiblock LNB Holders (2 way 300719 and 4 way 300727).
- High quality design
- Pre-mounted feedarm
- LNB holder with clip-on bracket (40mm and 25mm diameter)
- Simple installation and adjustment
- LNB cable can be routed through the feedarm
- Stable, non-slip mast bracket with U bolts
- Galvanised steel with Polyester power coat
Dimensions (cm): 60x65
Frequency Range (GHz): 10.7-12.75
Gain (@ 11.7GHz): 35.8dBi
G/T (NF LNB 0.7dB): 16.0dB/K
Offset Angle: 26 degrees
Elevation Range: 10 degrees-50 degrees, 45 degrees-80 degrees
Beamwidth: 3.1 degrees
Windload (@ 42m/s): 425N
Mast Dimensions (mm): diameter32-50 (Not suitable for a 3" Mast)
