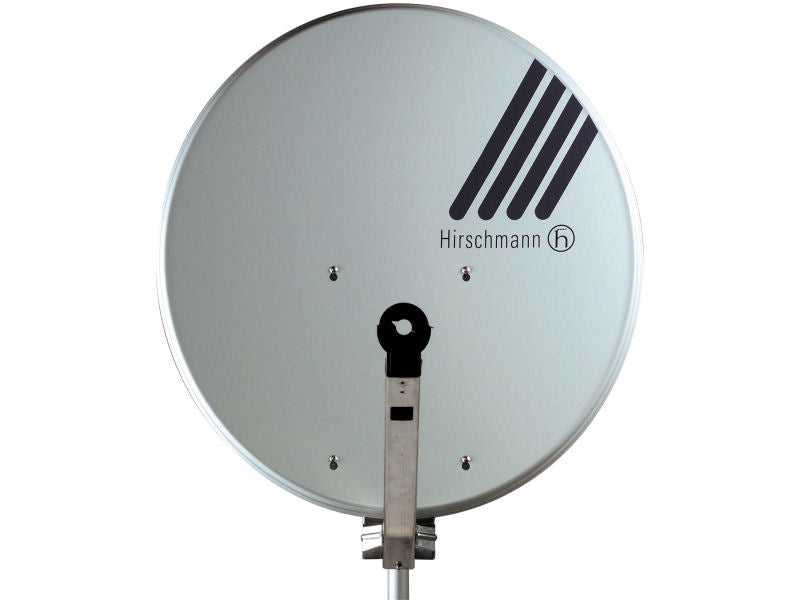

Hit SAT series - the solution for single or multiple subscriber systems with future-proof technology, the highest quality and an attractive price/performance ratio.
Tech Tip : This dish has proved to be particularly good at receiving signals on 16 and 26 Deg’s
- Offset parabolic reflectors for fixed alignment to one satellite in the frequency range 10.7-12.75 GHz
- Standard feed mount for all receiving systems in the Hit range
- Feed fitting 40 mm
- Aluminium reflector
- Adjustment scale for elevation
- Robust mount
- Corrosion protected parts
- Cable duct in feed arm and back
- Unfolding, pre-assembled feed arm
- Back and mast mount pre-assembled, folded flat – for straightforward installation, no separate parts
- Probably the quickest dish you will ever put together!
Reflector Ø: 0.85m
Colour: Light Grey
Frequency Range: 10.7-12.75GHz
Gain at 10.95 GHz: min. 38.3dBi
Half-value aperture 3 dB: 2.1º
Offset angle: 21.1º
Noise temp. at 30° elevation: 40 K
G/T: 22.3 dB/K
Mount for mast Ø: 40-89mm
Adjustment range, elevation: 15-45 degrees
Wind load: 600 N1)*
Width/height: 85.5x90.5cm
