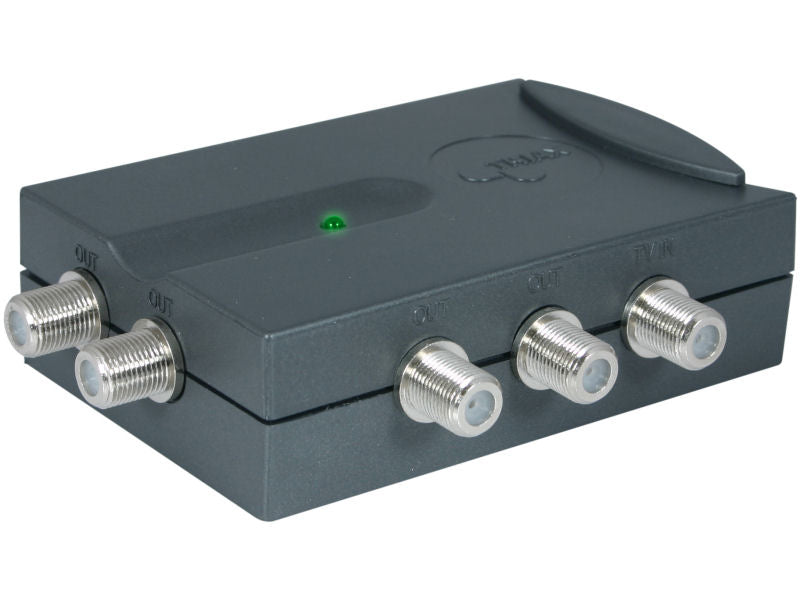

TRIAX 'F' 4 Set Amp 9V Link VHF/UHF 7dB
- Product SKU: 370403
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|Domestic|Indoor Amps - Triax / Wolsey
Domestic Distribution link Amplifier
- For use with SKY Digital Satellite Receivers and Triax Digital Link
- 'F' Connector
- Mains powering option*
- Easy to install
- Power on LED
No of inputs: 1
No of outputs: 4
Frequency range (MHz): 88 to 862
Typical Forward Gain (dB): 7
Reverse Path Frequency Range (MHz): 5 to 30
Typical Reverse Path Gain (dB): 6
Max. Output (dBuV): 89
Noise (dB): <5
Connectors (Female on all ports): F
IR Control Capability: Triax Digital Link System
Power for Remote IR Receivers (via Outputs): 9V DC at 15mA per Outlet
Short Circuit Protection on Outputs: Yes
Power On LED Indicator: Yes
Supply (via Input): 9V at 75mA Max
*Mains Power Adapter Input: Yes (3.5mm Jack)
Screened: Yes
Operating Temperature Range: -10 degrees C to +55 degrees C
Triax Style Plastic Housing (with clip on base): Yes
