TRIAX 'F' 2 Set Amp 9V Link VHF/UHF 8dB
Rated 3.5/5 based on 11 customer reviews
  • Order By 5pm
    For Same Day Dispatch
  • 99% Customer
    Feedbacks
  • 14 Days
    Money Back Guarantee
  • Payment
    Secure System
  • Only Best
    Brands

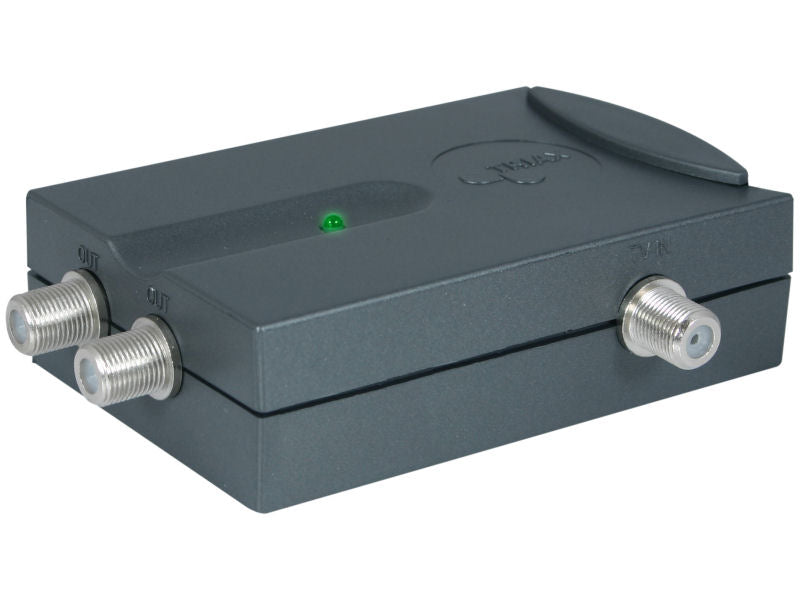

TRIAX 'F' 2 Set Amp 9V Link VHF/UHF 8dB

Available: In Stock
Wishlist Compare
£15.99

Domestic Distribution link Amplifier

  • For use with SKY Digital Satellite Receivers and Triax Digital Link
  • 'F' Connector
  • Mains powering option*
  • Easy to install
  • Power on LED

No of inputs: 1
No of outputs: 2
Frequency range (MHz): 88 to 862
Typical Forward Gain (dB): 7
Reverse Path Frequency Range (MHz): 5 to 30
Typical Reverse Path Gain (dB): 6
Max. Output (dBuV): 89
Noise (dB): <5
Connectors (Female on all ports): F
IR Control Capability: Triax Digital Link System
Power for Remote IR Receivers (via Outputs): 9V DC at 15mA per Outlet
Short Circuit Protection on Outputs: Yes
Power On LED Indicator: Yes
Supply (via Input): 9V at 75mA Max
*Mains Power Adapter Input: Yes (3.5mm Jack)
Screened: Yes
Operating Temperature Range: -10 degrees C to +55 degrees C
Triax Style Plastic Housing (with clip on base): Yes

Domestic Distribution link Amplifier

  • For use with SKY Digital Satellite Receivers and Triax Digital Link
  • 'F' Connector
  • Mains powering option*
  • Easy to install
  • Power on LED

No of inputs: 1
No of outputs: 2
Frequency range (MHz): 88 to 862
Typical Forward Gain (dB): 7
Reverse Path Frequency Range (MHz): 5 to 30
Typical Reverse Path Gain (dB): 6
Max. Output (dBuV): 89
Noise (dB): <5
Connectors (Female on all ports): F
IR Control Capability: Triax Digital Link System
Power for Remote IR Receivers (via Outputs): 9V DC at 15mA per Outlet
Short Circuit Protection on Outputs: Yes
Power On LED Indicator: Yes
Supply (via Input): 9V at 75mA Max
*Mains Power Adapter Input: Yes (3.5mm Jack)
Screened: Yes
Operating Temperature Range: -10 degrees C to +55 degrees C
Triax Style Plastic Housing (with clip on base): Yes
