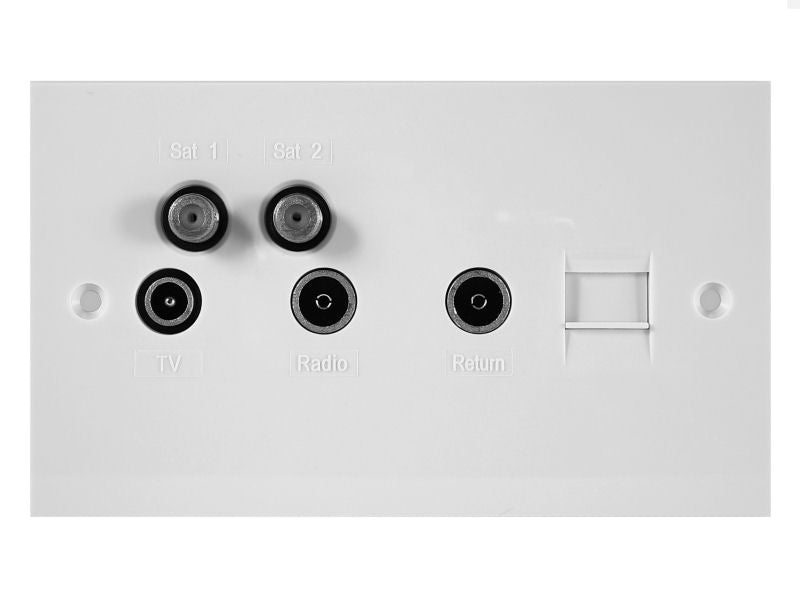

- DDU
- Designed for installations using Domestic Distribution Unit (stock code: #2199)
- Fully Screened
- UK style front plate
- Die-cast housing
- DAB compatible
- Will fit standard 25mm flush mounting box
Same as plate #304114 but with an additional diplex connection between SAT2 and RETURN to give a two cable solution to the plate instead of three
Frequency Range (MHz)
TV: 47-68, 254-862
Radio: 87.5-230
Satellite: Sat I 950-2150
Satellite: Sat 2 DC-2150
Return: DC-862
Through Loss (dB)
TV: < 3.5
Radio: < 3.0
Satellite: Sat I < 3.5
Satellite: Sat 2 < 4.0
Return: < 4.0
Connector Type
Inputs: Push Terminal and Clamp
TV: IEC Male
Radio: IEC Female
