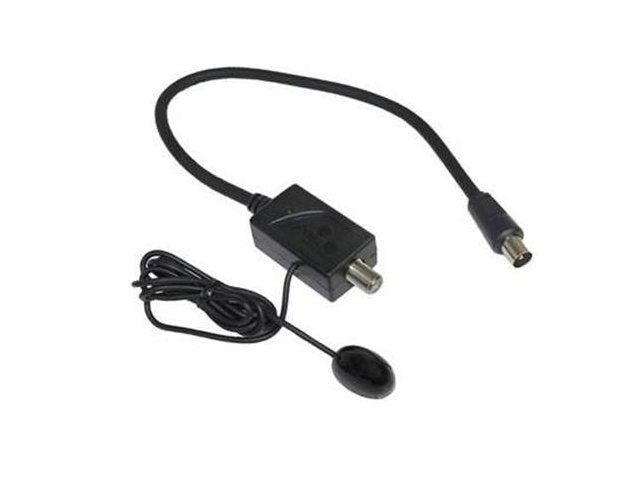

The Triax Digital Link will allow control of your SKY Digital satellite receiver whilst viewing in other rooms around the home.
It is compatible with UK digital satellite receivers with an output marked RF-OUT 2 that provides a second TV output together with a 9 volt DC supply.
*Now available with a new discreet lens cover*
- Compact design ideal for LCD and plasma TV's
- Adhesive base for flexible installation
- Easy to install
- F Connector
- Individually bagged
Input Signal Frequency: 37.9kHz Carrier (Infra Red system)
Output Signal Frequency: On-Off Keyed 7MHz Carrier
Line Power Requirement: 9V DC @ 10mA
Infra Red Sensor Lead: 0.9m
Output Connector: IEC Male
Input Connector: F Female
Operating Temperature: 0 - +40 Deg's C
Fly Lead on Output: Yes
