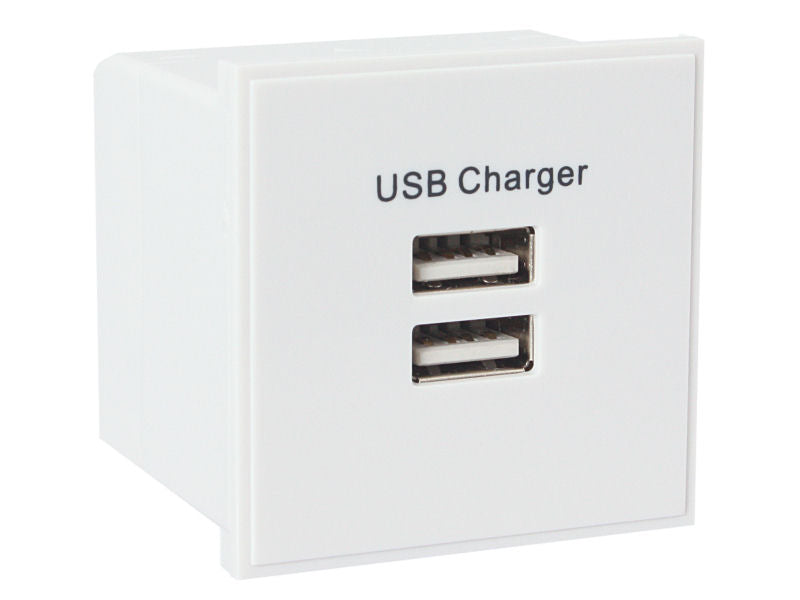

The TRIAX USB Charger allows two mobile devices with USB connections to be charged simultaneously. Eg: tablets, smartphones, MP3 players, e-books, satellite navigation and games consoles.
Use the existing USB cables to connect and charge your devices - negates the need to carry different adaptors.
It is the perfect solution for locations where mobile electronic devices are used:
- Libraries
- Public waiting areas
- Transport hubs and transport
- Conference rooms, business suites
- Homes
- Hotels
- Offices
- Schools
Features:
- White 50 x 50mm modules designed to clip into Eurogrid modular range
- Fits a standard 35mm backbox
- Suitable for direct ring main connection
- Wide-range input voltage from 100 to 240 V
- 5V output voltage with an output current of 1.8 A, if one device is connected, or a total output current of 1.8 A, if two devices are connected
- Short circuit and overload proof
- Low standby consumption
Input Voltage: 100-240VAC/50/60Hz
Output Voltage: 5VDC (±5%)
Output Current: 1.8 A per socket, if 2 devices are connected, total 1.8A
Power Consumption in Standby: <300 mW
Ambient Operating Temperature: -5 - +45 degree C
Conductor Cross-Section: max. 2.5mm²
Connection Type: Screw Terminals
