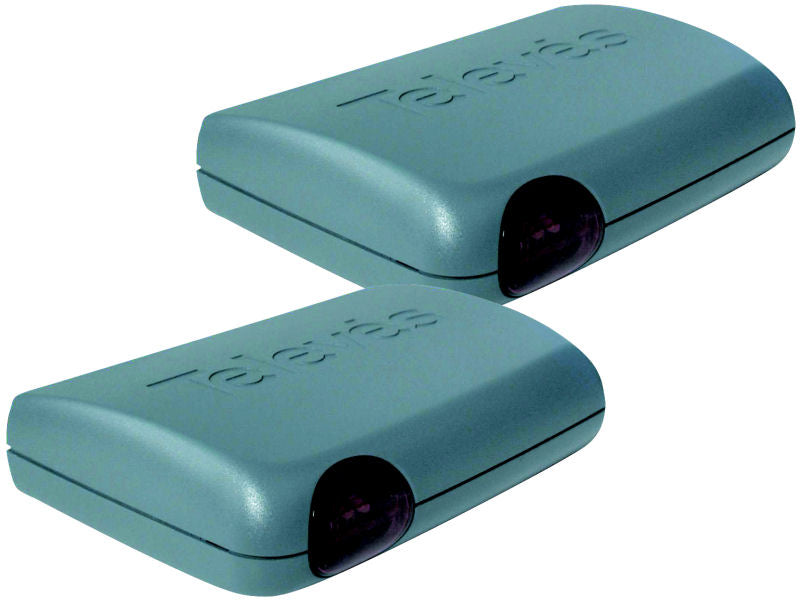

The Televes 730704 Digidom uses the cutting-edge design in wireless technology to send stereo audio and video around your home. Watch your favorite TV programs or listen to Hi-Fi quality stereo sound in anywhere of your house without the need to run extension cables and no interference from your neighborhood.
MAIN FEATURES:
- 2.4GHz wireless transmitter and receiver with three selectable channels
- A/V source in (Ex. : SAT/STB/DVD)
- Female/male SCART connector
- Several types of cables for connection A/V
- All antennas (2,4 GHz and 433 MHz) are embedded into housing inside
- Low power consumption
- NTSC/PAL video format available
- IR remote control data rate: 38k acceptable
SPECIFICATIONS:
Transmitter (TX)
Channel / Frequency (Nº / MHz): 1 / 2421, 2 / 2449, 3 / 2477
Transmitter Power (dBm): 10
Modulation (A/V): ASK
Video Input Level (Vpp): 1
Audio Input Level (Vpp): 1
Video Input Impedance (ohm): 75
Audio Input Impedance (ohm): 600
Supply Voltage (Vdc, 300 mA): 9
Power Consumption (mA): 180
Dimension (mm): 160 x 109 x 41,3
Receiver (RX)
A/V Output level (Vpp): 1
Receiver Sensitivity (dBm): -85
Supply Voltage (Vdc, 300mA): 9
Power Consumption (mA): 250
Single-Channel IR Transmission Frequency (MHz): 433,92
Dimension (mm): 160 x 109 x 41,3
KIT INCLUDES:
Transmitter (TX) x 1
Receiver (RX) x 1
9V Power Adaptor x 2
Infrared Extender x 1
Cables of connection A/V x 4
Users Manual x 1
