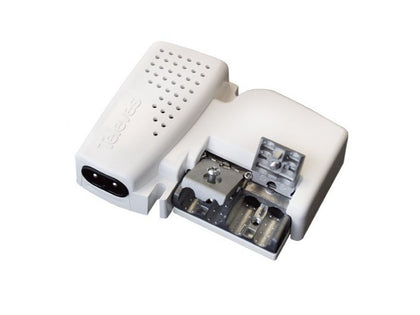

TELEVES BOSS-TECH Masthead 12dB LTE 21-57
- Product SKU: 562001
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|Domestic|Masthead / PSU's - Televes
The Televes BOSS-TECH Masthead makes compatible any passive antenna with the LTE signal, since it filters out LTE/4G signals and provides the BOSStech intelligent system.
Thanks to these two features, the upgrade of the facility by means of a Q-BOSS is done on foot mast, and without changing the antenna.
The major advantages provided by this system are the lack of adjustment and less time spent in the work of adapting the antenna installation. Both benefits bring greater profitability to the installation company.
Bands Ch21-C57
Gain (dB): 12
Output level DIN45004B (dBµV): 102
Margin of automatic gain (dB): 0-15
Automatic output level (10 DTT channels) (dBµV): 85
Noise figure (dB): 2
Powering (Vdc): 12-24
Current consumption (mA): 40
Protection level (IP): 23
Dimensions (W x H x D) mm: 88 x 79 x 42
