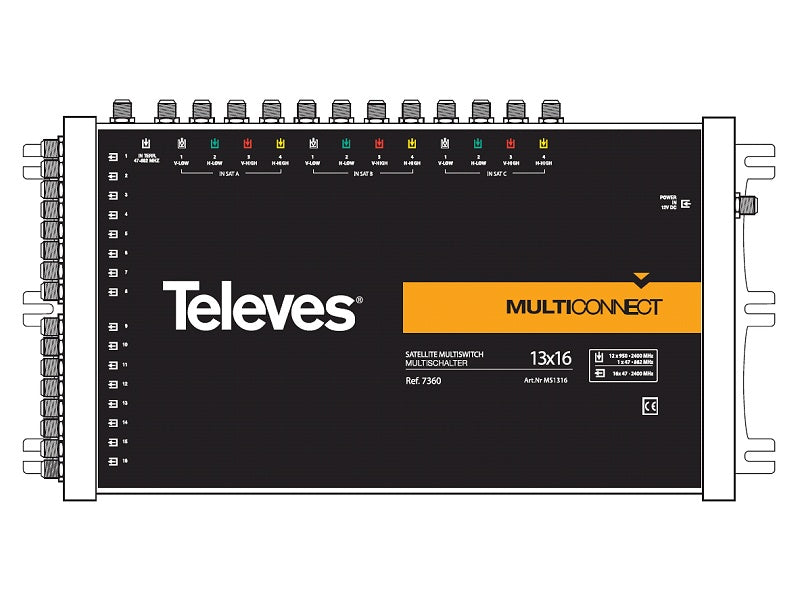

TELEVES 13x16 CASCADE-TERMINATED
- Product SKU: 736002
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|IRS|Switches - Televes Cascade
13x16 CASCADE-TERMINATED
This product is a multiswitch with 12 inputs 14V SAT A (v. polarisation; low band), 18V SAT A (h. polarisation;low band), 14/22KHz SAT A (v. polarisation; high band),18V/22KHz SAT A (h. polarisation; high band), 14V SAT B (v. polarisation; low band), 18V SAT B (h. polarisation;low band), 14/22KHz SAT B (v. polarisation; high band),18V/22KHz SAT B (h. polarisation; high band), 14V SAT C (v. polarisation; low band), 18V SAT C (h. polarisation;low band), 14/22KHz SAT C (v. polarisation; high band),18V/22KHz SAT C (h. polarisation; high band), 14V SAT D (v. polarisation; low band) and 16 outputs user.It also has an input for mixing the terrestrial signal that is distributed to all the outputs.It is possible to select, from any of the 16 outputs, the desired input via DiSEqC switch and the appropriate combination of voltage 14/18V and tone 0/22 KHz.Note 1: For correct operation you must confi gure the DiSEqC always in the receivers.
