SQISH MKII 43cm Discreet Satellite Dish
The SQISH MKII is a discreet alternative to a satellite dish and can be used to receive Sky and Freesat across the majority of the UK. It can also be used to receive high powered satellites across Europe and the rest of the world.
Please note: This dish no longer includes a QUAD LNB however either the Inverto single LNB or any Invacom LNB will suit.
There are lots of places and reasons to use a Sqish:
- Conservation areas and listed buildings
- Coastal Towns - No Rust!

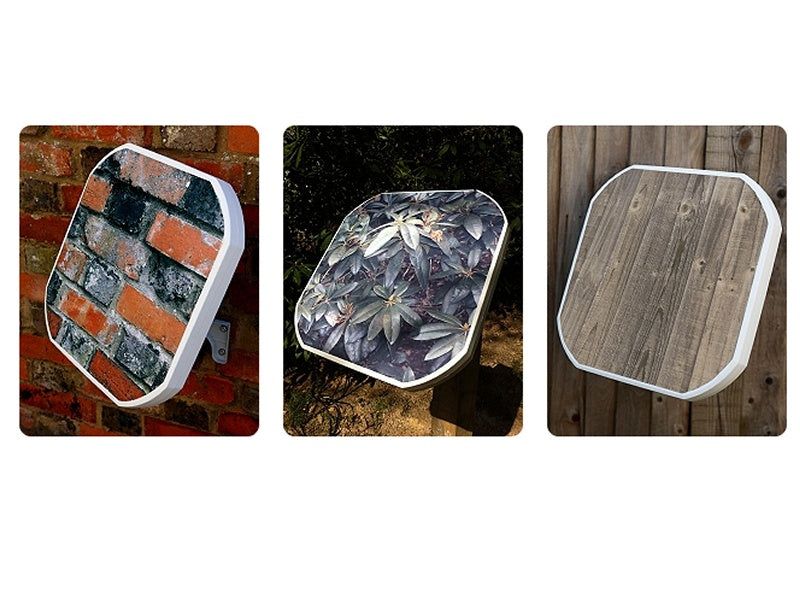

- Extra discreet with Sqishflage sticker
- Small at only 43cm wide, 26cm high, 7cm deep
- Mobile use - caravans, mobile homes etc,
- Dish Stigma - don't want a dish!
Supplied with a multipurpose bracket for use with a pole mount, window sill mount and flat mount. Allows mounting with 90 degree clearance.
- Supplied Colour : White
- Input Satellite Frequency: 10.7 - 12.75 GHz
- Polarization: Dual Linear (Horizontal and Vertical)
- Antenna Gain: 33dBi at 12.7 GHz
- Phase Noise: minus 80dBc/Hz (@10KHz), minus 95dBc/Hz (@100KHz), minus 110dBc/Hz (@1MHz)
- Input VSWR: 2.5:1 Typ
- Image Rejection: 40dB Min
- Conversion Gain: 55dB Typ
- Output VSWR: 2:1 Typ
- Gain Flatness: 6dB p-p Max
