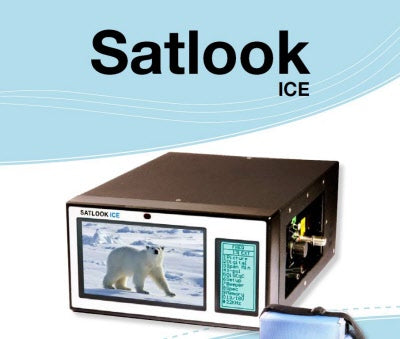

Satlook Ice Emitor Spectrum Analyzer Satellite Meter..This Meter is made for exact alignment and adjustment of satellite reception. It has been designed for professional use when high accuracy and precise information
are needed. It´s easily operated without a lot of unnecessary buttons and knobs. The basic functions are easy to get a hold on and takes only minutes to learn. SatLook Ice also has very high resolution and accuracy.
FEATURES :
DVB satellite-receiver 920-2150MHz
Spectrum-analyzer with expanded spectrum
DVB-S (Free to Air) and Analog TV-picture
DVB-S FTA fully controlled via instrument or by the enclosed
remote controll
Digital readout of BER and SNR.
Super bright 5” 16:9 TFT-LCD color display
Exact signal-level readout in dBuV
LNB voltage 13/18V, 22KHz tone switch
DiSEqC according to level 1.0, 1.1 and 1.2
KU- and C-band (normal/inverted video)
Lots of memory positions and channel-lists setup
Tuneable audio bandwidth 5.5-8.5MHz
RS232 for PC-connection (up/download)
Rechargeable Li-Ion battery
Nice & small, only 3Kg complete with carrying case
Technical Specification
Input frequency: 920-2150MHz.
Sat-TV min level in: About 35 dBuV (noise).
Sat-TV max level in: About 90 dBuV.
Sat-TV attenuation: 15 dB attenuator on/off.
Display of signallevel
(analog):
>dB on LCD/monitor. Pitch-tone.
Sat-TV accuracy: ±1½ dB (at +20° C)
DVB-S Digital display of
signallevel:
S/N (signal/noise-ratio) BER (bit error rate)
TV standard: Multi TV/ (PAL, NTSC, SECAM).
KU- C-band: Yes, selectable.
Input impedance: 75 Ohm, BNC-con.
Picture-screen: 5” 16:9 TFT-LCD monitor
Menus: On LCD 64x128.
TV-Channels: Displays both analog and digital (DVB-S)
TV-channels
Sat-TV power out: Yes, 13-18V.
Sat-TV control: 22 kHz, DiSEqC SatCr
DiSEqC Yes, all 1.0 and 1.1. 1.2
Toneburst on/off.
DiSEqC actuator: Built in positioner for DiSEqC 1.2,
PC-connection: RS232-output and PC-software.
Battery: Rechargable 12v, 3.5 amp/hour.
Weight: About 4 kg incl.battery.
Accessories: Nylon carrying-case.
Power-supply of 220v/13.5v, 1.7amp.
Car-charger, BNC/Fadapters
