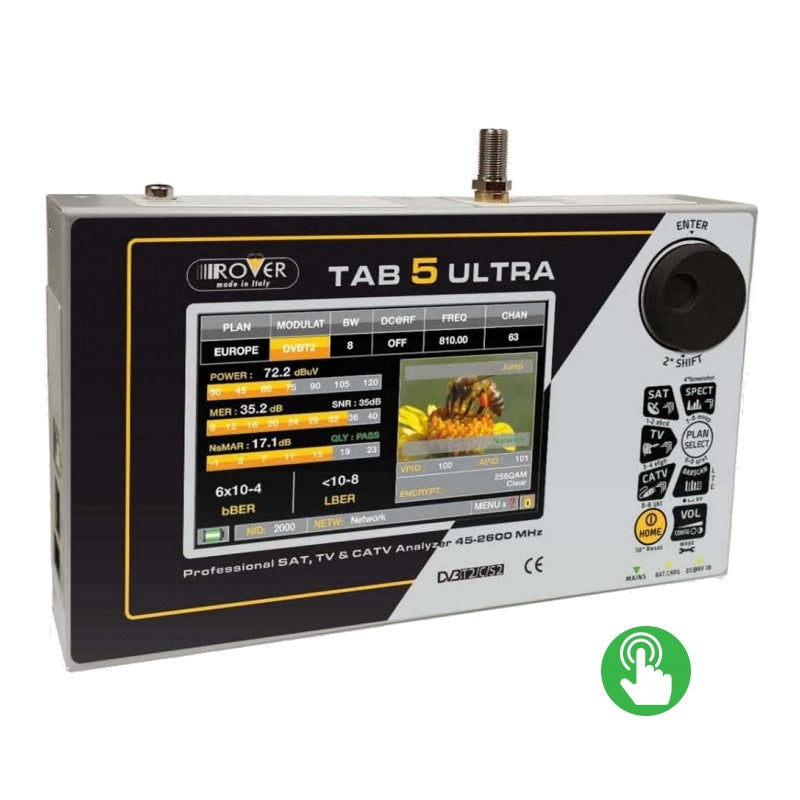

ROVER TAB 5 ULTRA PROFESSIONAL SIGNAL STRENGTH METER SPECTRUM ANALYSER
TV - SATELLITE - CABLE - dSCR WIDEBAND SUPPORT - AUTOMATIC - FAST - EASY-TO-USE
THE MOST EASY & COMBINED TOUCH-SCREEN FIELD STRENGTH METER WITH HEVC
Ultra portable all-in-one professional signal analyser with WIDEBAND support for SAT QPSK/8PSK, TV COFDM and CABLE QAM Signals.
SPECIAL FUNCTIONS
- Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode.
- Automatically identifies all the signals with digital modulation SAT, TV and CATV.
- Automatic Assistant: Signal Quality analysis, Channel Scan memorization.
- Barscan TV & CATV function from 10 to 100 channels on one screen.
- Buzzer & Noise Margin real time graph for digital signals microinterruptions.
- Optical Input (optional).
- WI-FI analyzer (optional).
- HEVC H265 decoder (optional).
- Reflectometric measurements APP.

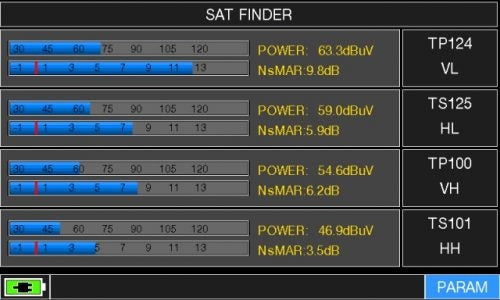

- SATELITE: DiSEqC, SCR, dCSS & Motorized antenna commands, SAT FINDER & SAT EXPERT.
- Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard.
- Loggers: TV, SAT & combined with stop & go function.
- SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.
- Free S.M.A.R.T. PC interface program and FW upgrades.
SPECIFICATIONS: MEASUREMENTS, SPECTRUM ANALYSIS & PICTURES
- Frequency Range: TV, CATV & Radio: 30-1.000 MHz; SAT: 700–2.700 MHz.
- Frequency Resolution: TV & CATV 25 KHz; SAT: 5 MHz.
- Power range Meas.: TV 35 to 115 dBμV, SAT 5 to 105 dBμV.

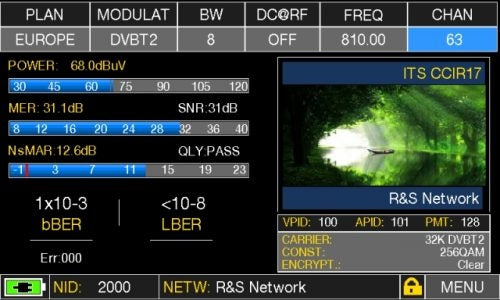

- Digital Meas: Digital Power, MER (36 to 40 dB max depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER.
- Measurement Resolution: 0.1 dB.
- Level Measurement Accuracy: 1 dB typ. (2 dB max.)
- Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 5 MHz @ -3 dB.

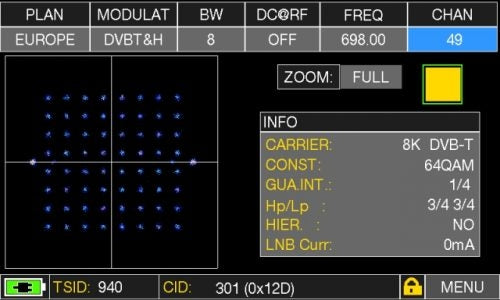

- Constellation: for TV/CATV and SAT signals.

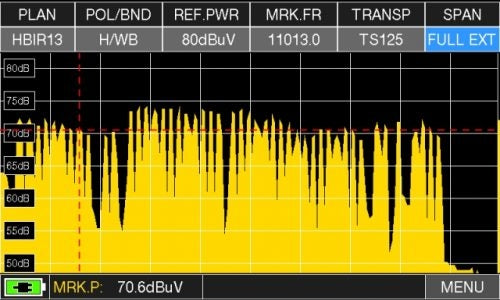

- Spectrum: Fast spectrum, Max Hold and spectrum memorization with real time compare function.
- Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position.
- Echoes, Pre-echoes, Micro-echoes: Representation in real Time.
- Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL.
- Digital Pictures: MPEG2-4 SD & HD, HEVC (opt.) pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen.
OPTICAL MEASUREMENTS
- SC input connector.
- Automatic loss calculation.
- Wavelengths (nm): 1310, 1490 & 1550.
- Range: -25 to +6 dBm.
- Resolution: 0.1 dB.
- Accuracy: +/- 0.5 dB.
- Optical to RF conversion.
COMM. PORTS AND OUTPUTS
- RF Input : 75 ohm (interchangeable “F”).
- USB 2.0: Type B (PC Interface).
- Audio: AAC supplied, DOLBY (optional extra).
- Video: Composite Video input.
GENERAL SPECIFICATIONS
- 5” TFT TOUCH display: 16:9 high resolution and high brightness.
- Power Supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & Battery Test function.
- DC voltage at RF input: 5 – 12 – 18 – 24 VDC, DiSEqC, SCR & dCSS commands.
- PC Interface: USB-B.
- Front-Panel: Alpha numeric keypad.
- Power Save: TFT backlight timer, brightness adj.
- PC Management: S.M.A.R.T. software.
- Weight: only 1,4 Kg with batteries.
- Size: H 13,0 x W 25,5 x D 4 cm.

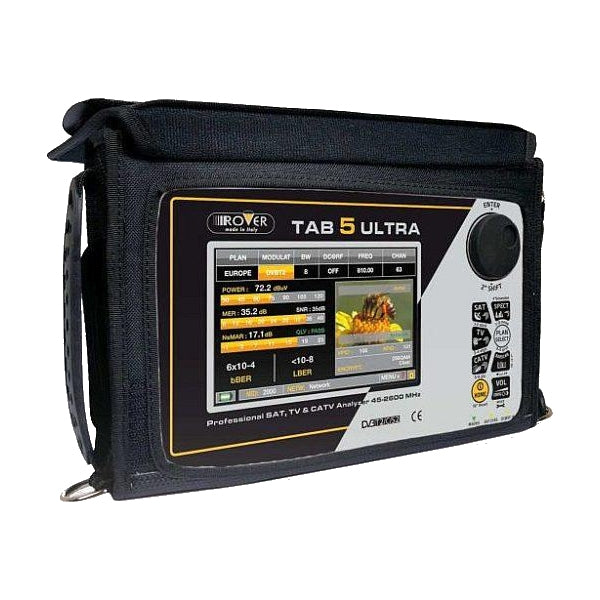

- Housing: Aluminium and Steel and padded bag.
EXTRA FACTORY OPTIONS AVAILABLE
- Optic Ingress
- Decoding HEVC H265 images
- WI-FI analyzer
- Dolby Audio AC3 DD+
- Elite bag with extra padding
Please note: Technical features can change without notice. Options (APP) must be requested when ordering the instrument. The screens and the texts of the relative MENU, can change without notice from model to model and according to the SW version installed.
