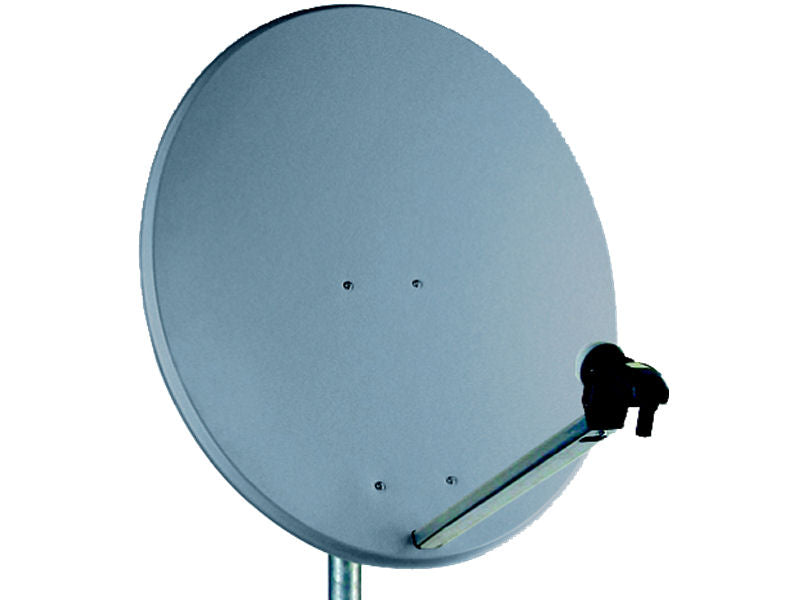

ORBITAL 80cm Solid Dish Steel (Boxed)
Pole mounted dish, for wall mount a suitable bracket will be required
- Will fit on a 3" Mast
Specification:
- Dimensions (mm): 845 x 745
- Gain at 10.75GHz (dB): 36.8
- Gain at 11.75GHz (dB): 37.8
- Gain at 12.75GHz (dB): 38.5
- Half power beamwidth at 12.75GHz (deg): < 2.2
- Cross polar discrimination on main axis (dB): > 27
- Mast Clamp (mm): 32-76
- Elevation Range (deg): 5-48
- F/D ratio: 0.6
- Offset angle (deg): 25
- Windloading at 72 Km/h or 45MPH (kg): 17
- Windloading at 144 Km/h or 90 (kg): 69
- Windloading at 216 Km/h or 134MPH (kg): 156
