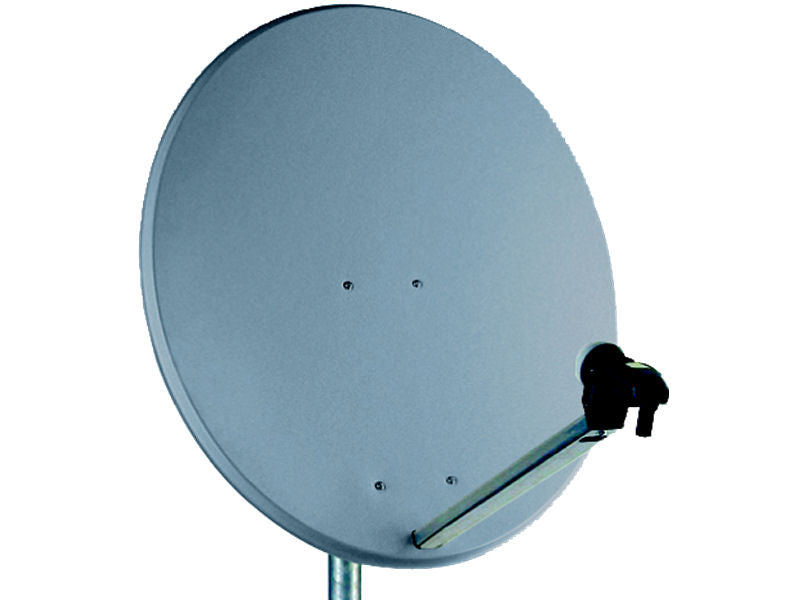

Pole mounted dish, for wall mount a suitable bracket will be required
80cm Aluminium anthracite grey high gain dish from Orbital.
Will fit on a 3" Mast
Specification:
Dimensions (mm): 845 x 745
Gain at 10.75GHz (dB): 36.8
Gain at 11.75GHz (dB): 37.8
Gain at 12.75GHz (dB): 38.5
Half power beamwidth at 12.75GHz (deg): < 2.2
Cross polar discrimination on main axis (dB): > 27
Mast Clamp (mm): 32-76
Elevation Range (deg): 5-48
F/D ratio: 0.6
Offset angle (deg): 25
Windloading at 72 Km/h or 45MPH (kg): 17
Windloading at 144 Km/h or 90 (kg): 69
Windloading at 216 Km/h or 134MPH (kg): 156
