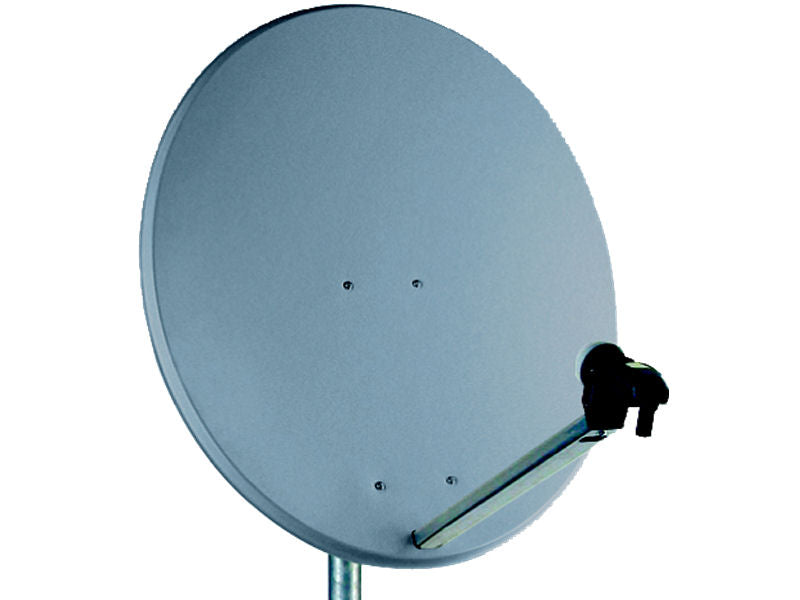

Orbital 80cm Pole Mount Dish Steel
Pole mounted dish for wall mount a suitable bracket will be required
- Fits on a 3" Mast
- Dimensions (mm): 845 x 745
- Gain at 10.75GHz (dB): 36.8
- Gain at 11.75GHz (dB): 37.8
- Gain at 12.75GHz (dB): 38.5
- Half power beamwidth at 12.75GHz (deg): < 2.2
- Cross polar discrimination on main axis (dB): > 27
Pole mounted dish for wall mount a suitable bracket will be required
- Fits on a 3" Mast
- Dimensions (mm): 845 x 745
- Gain at 10.75GHz (dB): 36.8
- Gain at 11.75GHz (dB): 37.8
- Gain at 12.75GHz (dB): 38.5
- Half power beamwidth at 12.75GHz (deg): < 2.2
- Cross polar discrimination on main axis (dB): > 27
