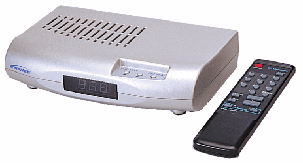

This Moteck VBoxII is used to position your C band dish. It takes DiSEqC 1.2 commands from your MPEG2 DVB satellite receiver and converts it into 36V pulse and sensor to store positions - can store 99 Positions. It can work as a stand alone positioner or it can accept DiSEqC 1.2 commands from a satellite receiver. Motor. Controls and displays position. Remote control Included.
FEATURE:
Compatible with DiSEqC 1.0 /1.2 Receivers or Any Receiver
Compatible with any Reed Switch Actuator or H-H Mount
5V DC Output for Optical Sensor Actuator
3 Digit LED Display
Drive Dish up to 3M
99 Satellite Positions
Fine-tune EAST / WEST Buttons
Optional Remote Control Available
Overload Protection ( Auto-recovery )
Anti-Noise Design
Remote Control Included
| Specification: | |
| Model | V-BOX II |
| Input | 110 VAC / 60Hz |
| Output | 36 VDC |
| Max. Dish Diameter | 3M |
| Max. Output Current | 3.5A |
| Max. Power Consumption | 80W |
| Protocol | DiSEqC 1.0 / 1.2 |
| Positions Memories | 99 |
| Controlled by | DiSEqC 1.2 Receiver or Included Remote Control |
| Display | 3 Digit LED |
| Resynchronize Function | YES |
| Manual Buttons | Power ON / OFF, EAST / WEST |
| Protection | Software Limit Protection Electric Overload Protection |
