Programmable Filter/Amp
4 In 20 Clusters 45dB 115dBµV
2 Year Warranty
Programmable terrestrial filter amplifier: 4 inputs: 1 FM + 1 DAB/VHF + 2 UHF / 20 Muxes / AGC / 12-24 V remote power

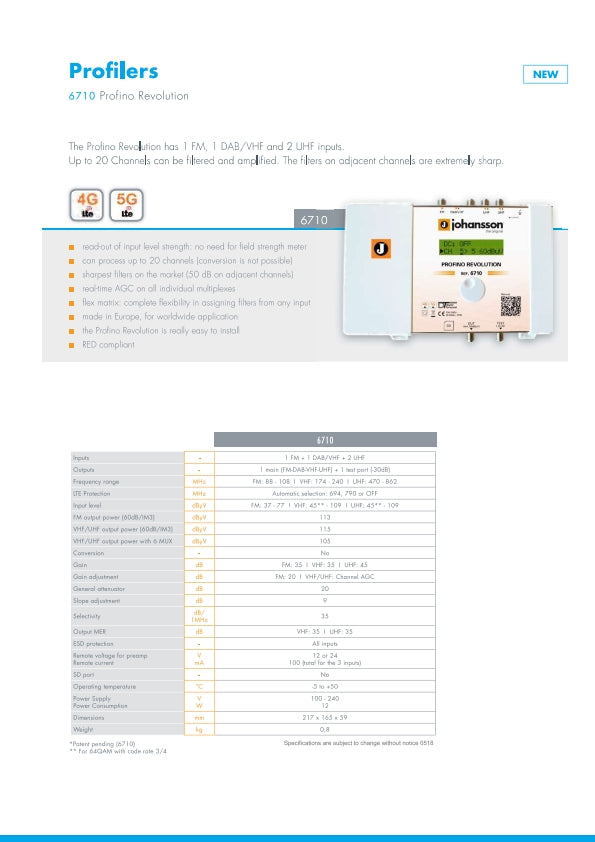

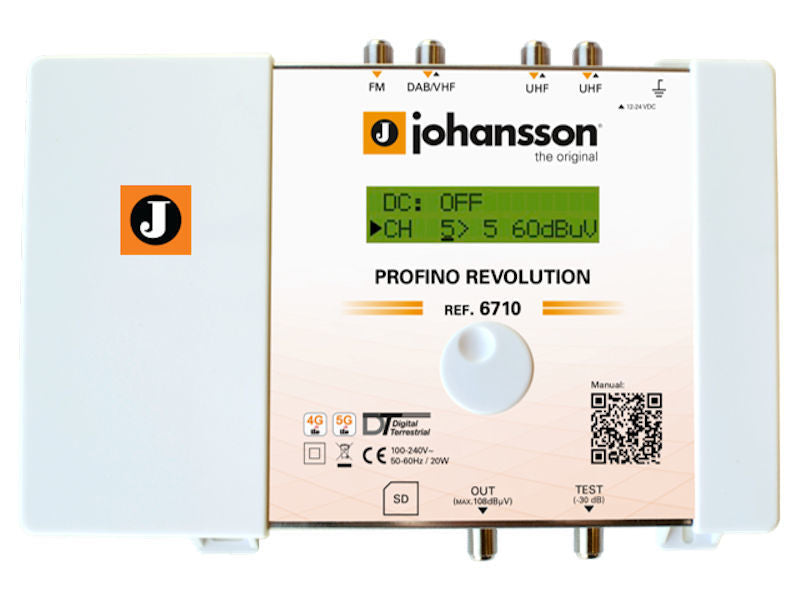

The Profino Revolution is a light version digital Profiler. It has 1 FM, 1 DAB/VHF and 2 UHF inputs. Up to 20 Channels can be filtered and amplified. Channel conversion is not possible,
but the filters on adjacent channels are extremely sharp.
Revolutionary technology:
- Read-out of input level strength: no need for field strength meter
- Can process up to 20 channels
- Sharpest filters on the market (50dB on adjacent channels)
- Real-time AGC on all individual multiplexes
- Flex Matrix: complete flexibility in assigning filters from any input
- Easy to install
- RED compliant
Inputs: 1 FM + 1 DAB/VHF + 2 UHF
Outputs: 1 main (FM-DAB-VHF-UHF) + 1 test port (-30dB)
Frequency range (MHz): FM: 88 - 108 VHF:174 - 240 UHF: 470 - 862
LTE protection (MHz): Automatic selection: 694, 790 or OFF
Input level (dBµV): FM: 37 - 77 VHF: 45* - 109 UHF: 45* - 109
FM output power (60dB/IM3) (dBµV): 113
VHF/UHF output power (60dB/IM3) (dBµV): 115
VHF/UHF output power with 1 MUX (dBµV): 105
VHF/UHF output power with 6 MUX (dBµV): 105
Conversion: No
Gain (dB): FM: 35 VHF: 35 UHF: 45
Gain adjustment (dB): FM: 20 VHF/UHF: Channel AGC
General attenuator (dB): 20
Slope adjustment (dB): 9
Selectivity (dB/1MHz): 35
Return Loss (dB): 10
Output MER (dB): VHF: 35 UHF: 35
ESD protection: All inputs
DC @ VHF/UHF input (V): 12 or 24
DC Load current @ VHF/UHF input (mA): 100 (total for the 3 inputs)
SD port: No
Operating temperature (°C): -5 to +50
Power Supply (V): 100-240
Power Consumption (W): 12
Dimensions (mm): 217 x 165 x 59
Weight (kg): 0,8
* For 64QAM with code rate 3/4
