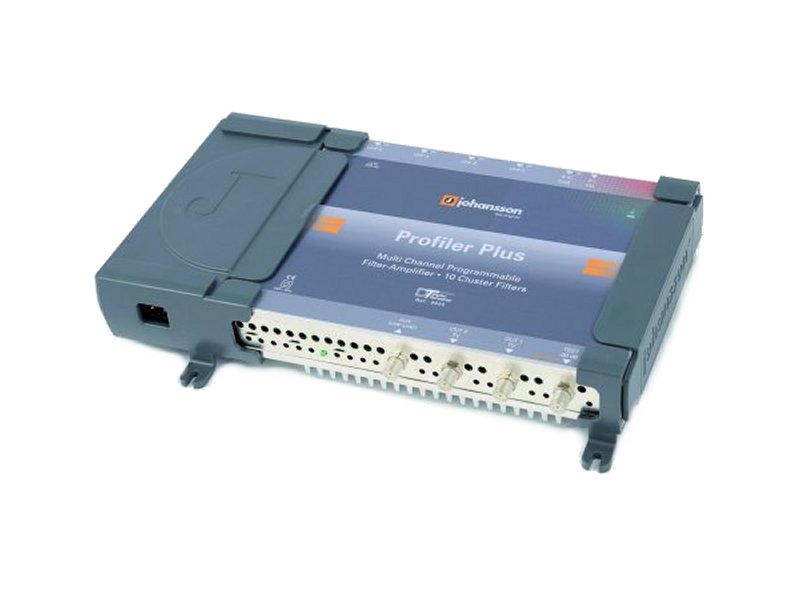

JOHANSSON Amplifier PROFILER PLUS

JOHANSSON Amplifier SUPER PROFILER

Programmable filter amplifier:
7 inputs: BI-FM / BIII-DAB / AUX / 4 x UHF
10 Clusters
5-12-24 V remote power

The next generation profilers, commercialized as Profiler PLUS, offer even better performance than their predecessors! Thanks to a new, in-house developed technology, the selectivity of the filters has noticeably increased. Because the new profilers have 4 UHF inputs, and 10 or 12 highly selective filters (depending on the model), even the most exotic situations are covered.

inputs: BI-FM / BIII-DAB / AUX (47-862 MHz) / 4 x UHF
highly selective filters thanks to new filter technology: 30 dB rejection @ 16 MHz
10 UHF filter clusters: 1 to 7 channels bandwidth
high gain: 60 dB
very high output power: > 120 dBµV
5-12-24 V selectable remote voltage to power a preamplifier on BIII-DAB and UHF inputs
2 programmable outputs
low temperature operation: no fan
high-efficiency power supply with increased lifetime
easy programming by PC with innovative configuration software or stand-alone control unit
remote configuration possibility!
