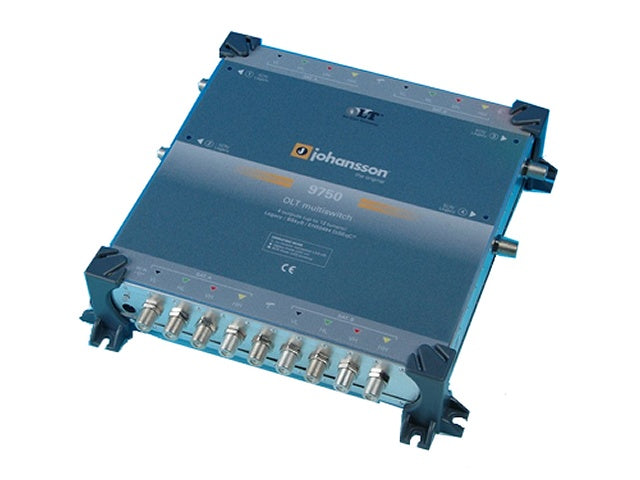

JOHANSSON 9x4 Way SCR Multiswitch *NEW*
SCR multiswitch: 8 satellite inputs/1 terrestrial input, 4 outputs (4 legacy set-top boxes or 12 OLT set-top boxes)
The device has 8 satellite inputs (2 satellite positions) and an LTE-protected passive terrestrial input. The switch can distribute signals for 4 (legacy mode) up to 12 (SCR mode) receivers. By cascading several units, more receivers can be connected. Thanks to the legacy support, the multiswitch can be used even if no SCR set-top boxes are installed yet.
The wide range of satellite input levels (70 to 100 dBµV) ensures the multiswitch will work even under extreme conditions.
- 8 satellite inputs and LTE protected passive terrestrial input
- wide range of satellite input levels: 70 to 100 dBµV
- high output power (AGC controlled)
- supports auto-tuning of set-top boxes
- low trunk-loss (ideal for cascading several multiswitches)
- multistandard support: EN50494/BSkyB/Legacy (backwards compatible with old set-top boxes) DC input for LNB powering
9750/9750D
Inputs - 1 x Terrestrial 8 x Satellite (2 satellite positions)
Outputs - 4 outputs (up to 12 tuners)
Frequency MHz Ter.: 5-790 (LTE protected) SAT: 950-2150
SCR channels MHz 1280/1382/1484
Supported standards - EN50494 / BSkyB / Legacy
Max. input level SAT dBµV 100
Max. output level SAT dBµV SCR mode: 90 Legacy mode: 80
Trunk loss dB Ter.: 3* SAT: 2,5
Return loss in/out dB > 10
Tap loss (Terrestrial) dB typ. 24
LNB remote current mA 500
STB current mA 85
Operating temparture °C -20 to +50
Dimensions mm 122 x 142 x 50
* 9750D has terminated terrestrial trunk line
