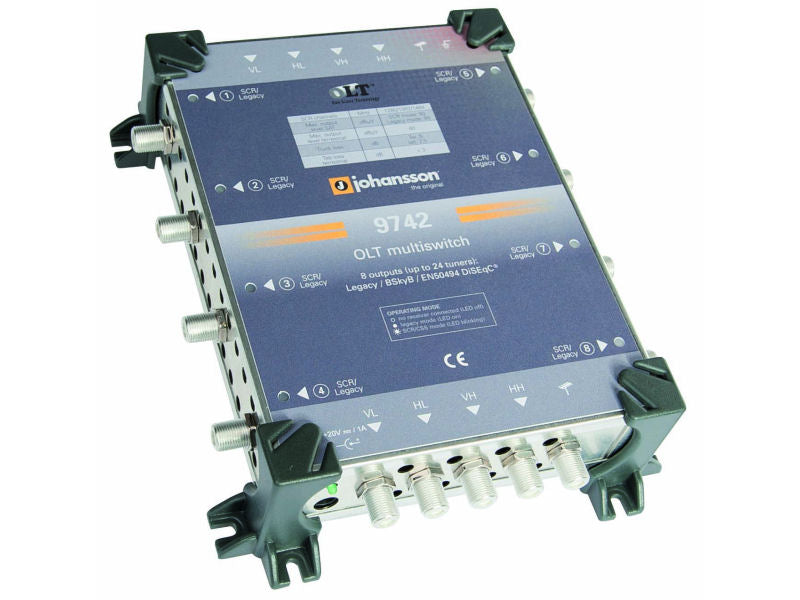

JOHANSSON 5x8 Way SCR Multiswitch

Available: In Stock
Wishlist Compare
  • Product SKU: 9742
£489.99

JOHANSSON 5x8 Way SCR Multiswitch

SCR multiswitch: 4 satellite inputs/1 terrestrial input, 8 outputs (8 legacy set-top boxes or 24 OLT set-top boxes)

The device has 4 satellite inputs and an LTE-protected passive terrestrial input. The switch can distribute signals for 8 (legacy mode) up to 24 (SCR mode) receivers. By cascading several units, more receivers can be connected. Thanks to the legacy support, the multiswitch can be used even if no SCR set-top boxes are installed yet.

The multiswich starts up in legacy mode, and switches automatically to SCR mode once an SCR command is received on its output. This is indicated by a flashing LED on that output.

The wide range of satellite input levels (49 to 110 dBµV) ensures the multiswitch will work even under extreme conditions.

  • 4 satellite inputs and LTE protected passive terrestrial input
  • Wide range of satellite input levels: 49 to 110 dBµV
  • High output power (AGC controlled)
  • Supports auto-tuning of set-top boxes
  • Low trunk-loss, ideal for cascading several multiswitches - Sat 2.5dB; Terr 5dB
  • Tap Loss Terr 24dB
  • Multistandard support: EN50494/BSkyB/Legacy (backwards compatible with old set-top boxes)
  • DC input for LNB powering - Use 9933UK PSU


THE MAIN PROBLEM WHEN SETTING THIS SWITCH UP WITH A SKY RXR IS THAT INSTALLERS RUSH THE SET UP PROCEEDURE! ONCE CHANNELS 11 and 14 OR 14 and 11 HAVE BEEN SET IN THE SCR MODE ON THE SET TOP, SWITCH OF SET TOP AT MAINS, LEAVE FOR 5 MINUTES; PLUG BACK IN TO MAINS AND LEAVE FOR A FURTHER 5 MINUTES - DO NOT RUSH THIS!!!!!!!!!

WHEN SETTINGS THE SCR CHANNELS ( 11 and 14 ), SOME SET TOPS PREFER 14 and 11 INSTEAD.
