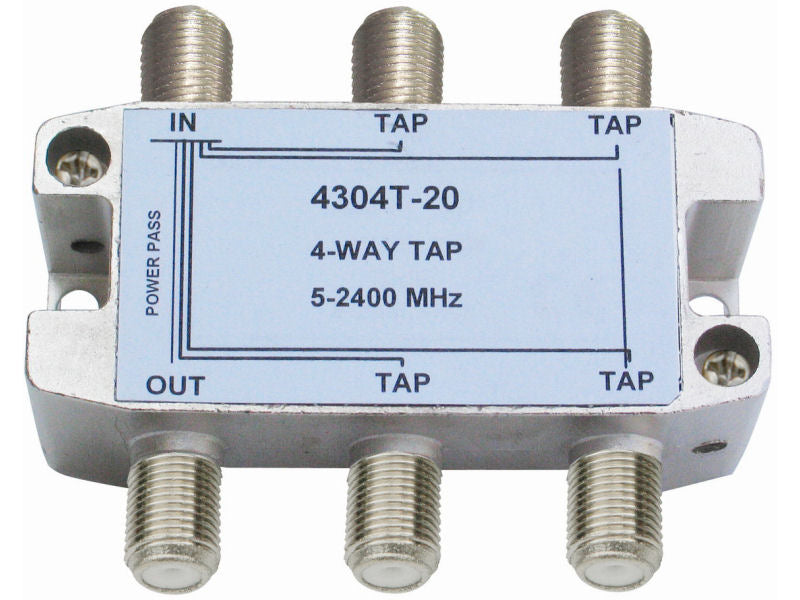

Internal 4/20 'F' Type Tap (5-2400mhz)
- Product SKU: 4304T-20
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|MATV / SMATV|'F' Taps (5-2400MHz)
4/20 F TYPE TAP Frequency range 5-2400MHZ. Power pass on trunk line. Fully screened RF shielded Zink Die-Cast housing with Nickel Plating and Earth Terminal built in. All Ports are 75ohm 'F' type with low Insertion loss. Screening (dB) 40-470 MHz: >75 470-1000 MHz: >65 1000-2400 MHz: >65 Tap Loss (dB) 5-1000 MHz: 15+/- 1.2 1000-2400 MHz: 15+/- 1.5 Through Loss (dB) 5-40 MHz: 1.0 40-1000 MHz: 2.5 1000-2400 MHz: 3.0 Isolation Out-Tap (dB) 5-40 MHz: 45 40-1000 MHz: 30 1000-2400 MHz: 25 Isolation Tap-Tap (dB) 5-40 MHz: 23 40-1000 MHz: 22 1000-2400 MHz: 21 RETURN LOSS (dB) 5-40 MHz: 14 40-1000 MHz: 12 1000-2400 MHz: 11
