Internal 2/25 'F' Type Tap (5-2400mhz)

Available: In Stock
Wishlist Compare
£4.99

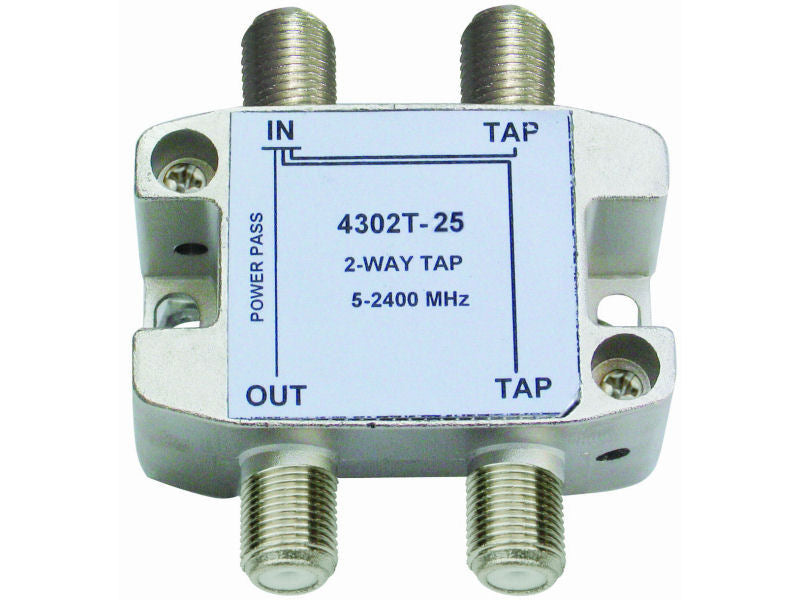

INTERNAL 2/25 'F' Type Tap (5-2400MHz)

2/25 F TYPE TAP

Frequency range 5-2400MHZ. Power pass on trunk line. Fully screened RF shielded Zink Die-Cast housing with Nickel Plating and Earth Terminal built in.

All Ports are 75ohm 'F' type with low Insertion loss.

Screening (dB)
40-470 MHz: >75
470-1000 MHz: >65
1000-2400 MHz: >65

Tap Loss (dB)
5-1000 MHz: 15+/- 1.2
1000-2400 MHz: 15+/- 1.5

Through Loss (dB)
5-40 MHz: 1.8
40-1000 MHz: 2.5
1000-2400 MHz: 3.5

Isolation Out-Tap (dB)
5-40 MHz: 35
40-1000 MHz: 30
1000-2400 MHz: 30

Isolation Tap-Tap (dB)
5-40 MHz: 60
40-1000 MHz: 40
1000-2400 MHz: 32

RETURN LOSS (dB)
5-40 MHz: 14
40-1000 MHz: 14
1000-2400 MHz: 14
