Internal 1/12 'F' Type Tap (5-2400mhz)

Available: In Stock
Wishlist Compare
£6.39

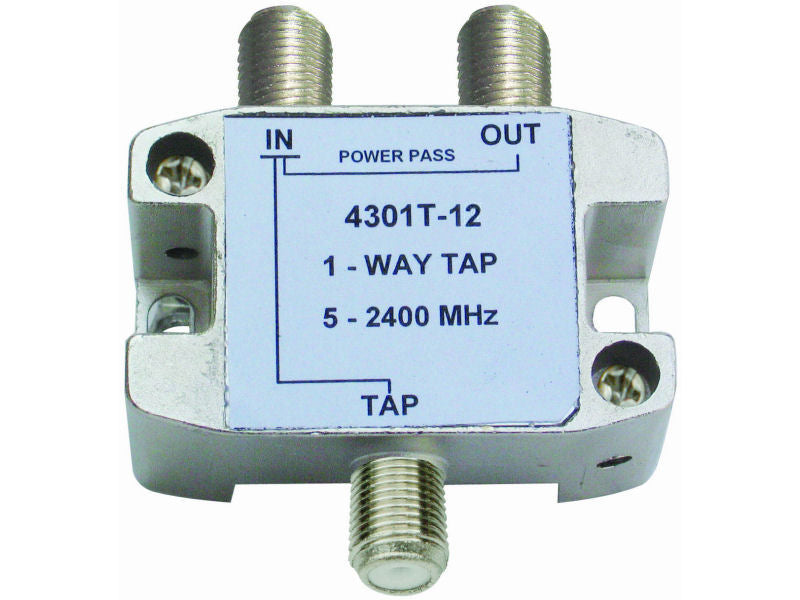

1/12 F TYPE TAP Frequency range 5-2400MHZ. Power pass on trunk line. Fully screened RF shielded Zink Die-Cast housing with Nickel Plating and Earth Terminal built in. All Ports are 75ohm 'F' type with low Insertion loss. Screening (dB) 40-470 MHz: >75 470-1000 MHz: >65 1000-2400 MHz: >65 Tap Loss (dB) 5-1000 MHz: 12+/- 1.0 1000-2400 MHz: 12+/- 1.5 Through Loss (dB) 5-40 MHz: 2.3 40-1000 MHz: 2.2 1000-2400 MHz: 3.0 Isolation Out-Tap (dB) 5-40 MHz: 35 40-1000 MHz: 28 1000-2400 MHz: 25 Isolation Tap-Tap (dB) 5-40 MHz: - 40-1000 MHz: - 1000-2400 MHz: - RETURN LOSS (dB) 5-40 MHz: 14 40-1000 MHz: 14 1000-2400 MHz: 12
