FRACARRO VOT90/10 Mini 1 Way Optical Tap
- Product SKU: 287214
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|IRS|Optical Fibre - Fracarro

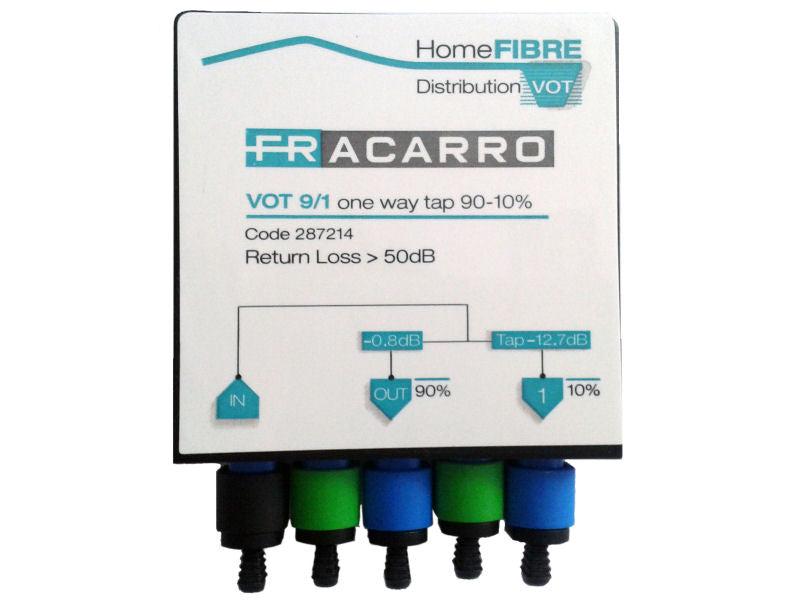

The innovative VOT90/10 mini optical tap from Fracarro is to be used in conjunction with their Home and System Fibre Solutions.
The compact dimensions enable them to be fitted into confined spaces,
Use with the “MINI” connector, which has a 3mm termination, making it ideal for pulling through narrow conduits.
Benefiting from it’s small diameter and immunity to electro magnetic interference this makes the Home and System Fibre the
perfect solution.
Main Specifications
- Small 3mm connector
- Cap cover to protect the ferule of the fibres
- Small splitters and taps
- Tree and star distribution
- Quick and easy to install
- Wide bandwidth 1260nm - 1590nm
Maximum insertion loss dB: <0.8
Tap Loss dB: <12.7
Output uniformity dB: <0.6
Tap output uniformity: dB: <1.2
Output Numbers: 1
Operating wavelength nm: 1260 - 1650
Optical return losses dB: >50
Operating temperature °C: From -40 to +85
Maximum input power mW: 500
