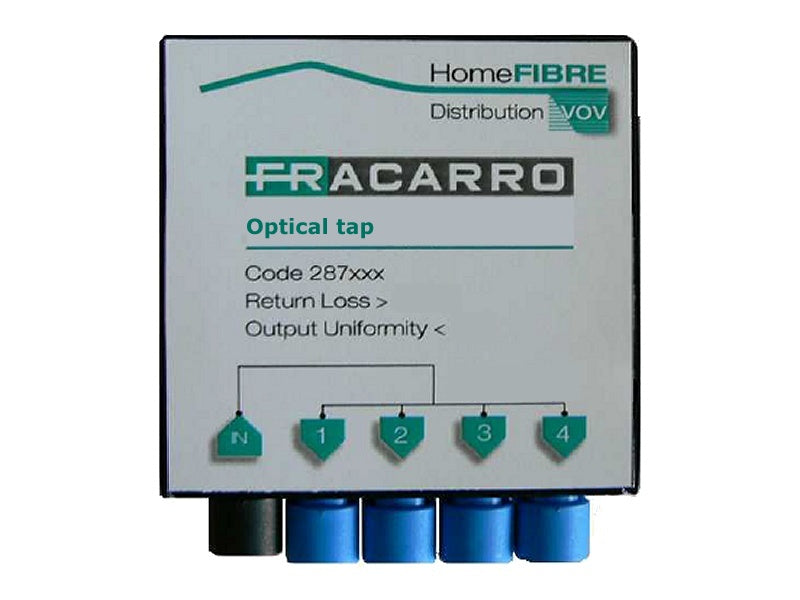

FRACARRO VOT2/3 Mini 4 Way Optical Tap

Available: In Stock
Wishlist Compare
£120.99

The innovative VOT2/3 mini optical tap from Fracarro is to be used in conjunction with their Home and System Fibre Solutions.

The compact dimensions enable them to be fitted into confined spaces,
Use with the “MINI” connector, which has a 3mm termination, making it ideal for pulling through narrow conduits.

Benefiting from it’s small diameter and immunity to electro magnetic interference this makes the Home and System Fibre the
perfect solution.

Main Specifications

  • Small 3mm connector
  • Cap cover to protect the ferule of the fibres
  • Small splitters and taps
  • Tree and star distribution
  • Quick and easy to install
  • Wide bandwidth 1260nm - 1590nm

Tap Loss dB: <13.7
Trunk line loss dB: <3.1
Output uniformity dB: <1
Output Numbers: 4
Operating wavelength nm: 1260 - 1650
Optical return losses dB: >55
Operating temperature °C: From -40 to +85
Maximum input power mW: 500
