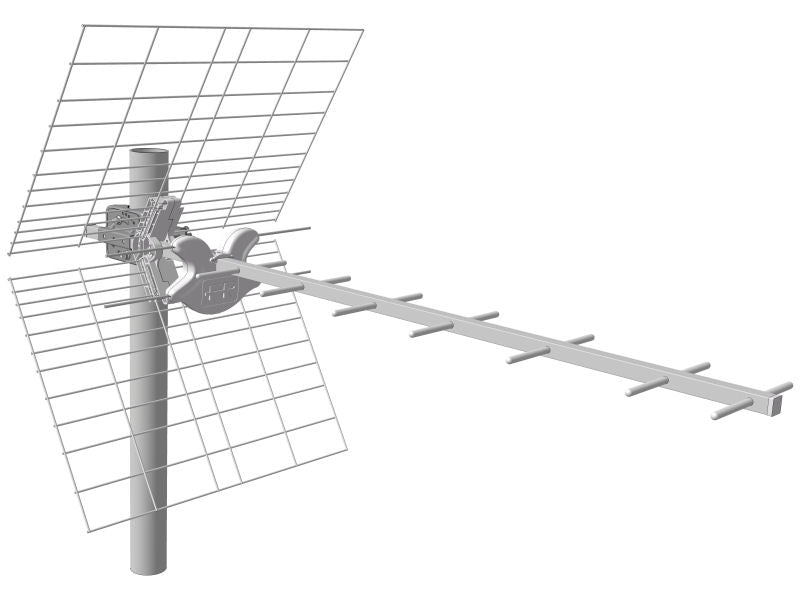

The Fracarro TAU LTE 'Killer' is a yagi aerial designed to reduce the impact of LTE transmissions within the TV Band.
- 7 elements
- SAW filter inside the dipole
- Wideband UHF aerial for TV reception
- H or V polarisation
- Maximum mast clamp diameter 60mm
- Double reflector
- Impedance 75 Ohm
- Selectivity 40dB at 20MHz (790-810MHz)
Band: UHF
Channels: E21 – E60
TECHNICAL CHARACTERISITICS
Bandwidth (MHz): 470 – 790
Maximum gain (dB): 14
Front-to-back ratio (dB): 30
Return loss (dB): -18
Beamwidth (-3dB) (°): +/-18
Impedance (Ohm): 75
MECHANICAL CHARACTERISTICS
Dimensions (L x W) (mm): 1170 x 497
Maximum mast Ø (mm): 60
Wind load at 120Km/h (720N/m2) (Kg (N)): 5.3 (51.94N)
Connector (Type): F
