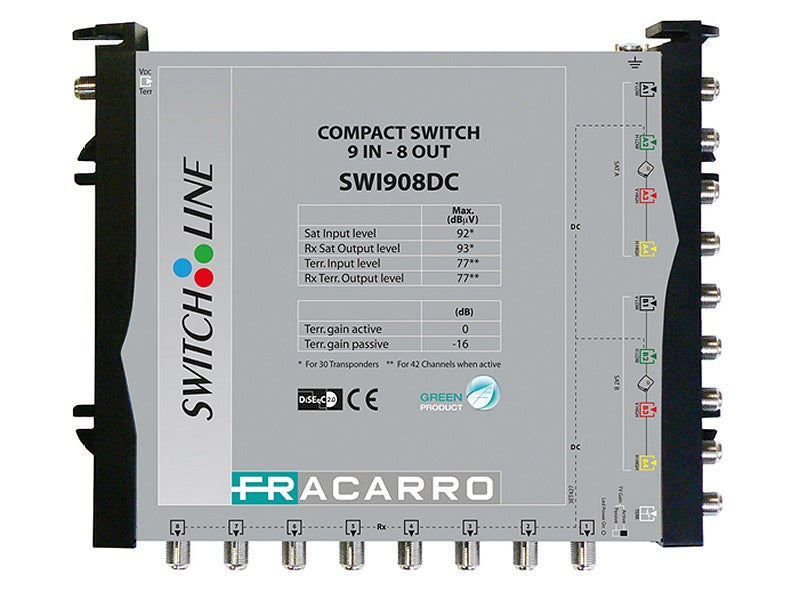

The Fracarro SWI908DC is designed to fulfil every installation requirement in small and medium sized distribution systems.
This switch can be powered from a STB, saving money and simplifying the structure of the system. At the same time the LNB can be powered from a STB even when only one user is connected.
It has an internal circuit for automatic detection and powering of a masthead amplifier. There is also a dip switch for terrestrial active/passive gain. In addition an input connector for a masthead amplifier is available when more than 100mA is required or all STBs are switched off.
Main Specifications
- Powered from a STB
- Active/passive terrestrial gain
- Low power consumption – green product
- Circuit for automatic detection and 12V supply for a terrestrial masthead amplifier
- Additional connector to supply power to the terrestrial input when necessary
- High SAT output level – 105dBuV
- Standard colour coding
- HD compliant
No. of inputs: 8 Satellite; 1 Terrestrial
No. of outputs: 8
SATELLITE
Bandwidth MHz: 950-2150
Gain dB: -2 to 2
Maximum output level (-35dBc 2 tones) dBµV: 105
TERRESTRIAL
Bandwidth MHz: 88-862
Gain (active/passive) dB: 0/-16
Maximum output level (-60dBc 3 tones) dBµV: 90
RETURN PATH (only when passive)
Bandwidth MHz: 5-65
Gain dB: -16
GENERAL PARAMETERS
Isolation SAT-SAT dB: 30
Switching control V, KHz: 14/18, 0/22
Power consumption passive TV mA: 60 (per output)
Power consumption active TV mA: 60 (per output) + 70 (TV amplifier)
Dimensions (L x H x W) mm: 230 x 180 x 30
Operating temperature °C: -10 to +55
