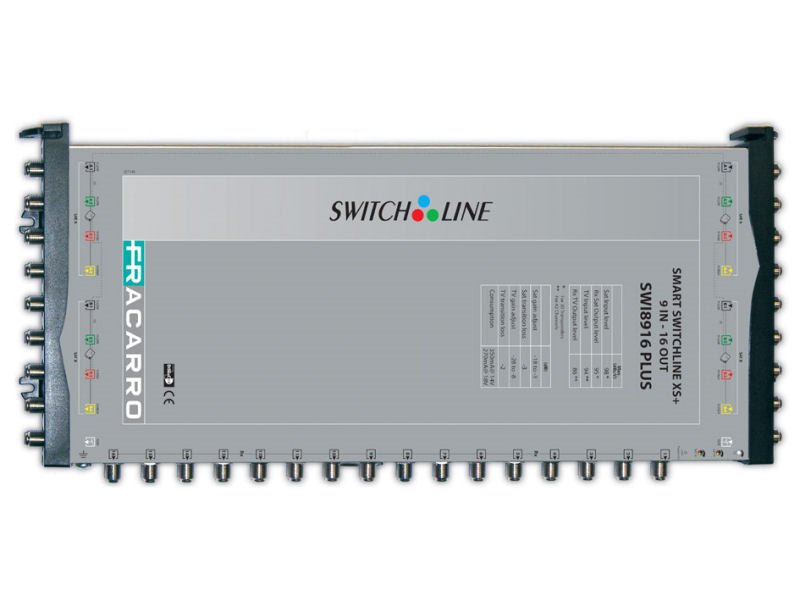

FRACARRO SWI8916+ Cascade Multiswitch

Available: In Stock
Wishlist Compare
  • Product SKU: 271069
£319.99

The Fracarro SWI8916+ is made to be used in a cascadeable system for medium and big installations.

It has 16 outputs and has been designed as a flexible and cost effective solution. The 3 gain adjustments (SAT A, SAT B and TV band) allows you to easily equalise the full system.

High isolation, low power consumption and HD compliance make it one of the best products you can find on the market.

Key Points

  • 9 inputs (8 Satellite, 1 Terrestrial)
  • 16 outputs
  • 2 Satellite gain adjustment: SAT A and SAT B
  • Terrestrial gain adjustment
  • Isolation > 45dB
  • Low power consumption
  • Capable of 100m drop lengths
  • Low insertion loss
  • Standard colour coding
  • HD compliant
  • Fixed gain on return path

Satellite
Bandwidth MHz: 950-2150
Gain dB: -6 to 0
Gain adjustment dB: 15
Insertion loss dB: 3
Maximum level output (-35dBc 2 tones) dBµV: 110

Terrestrial
Bandwidth MHz: 85-862
Gain dB: -11 to -5
Gain adjustment dB: 20
Insertion loss dB: 2
Maximum level output (-60dBc 3 tones) dBµV: 100

Return path
Bandwidth MHz: 5-65
Gain dB: -7
Insertion loss dB: 2
Maximum level output (-35dBc 2 tones) dBµV: 97

General parameters
Isolation SAT-SAT dB: 45
Switching control V, kHz: 14/18, 0/22
Power supply V: 14/18
Current consumption:14V mA: 350, 18V mA: 280
Dimensions (w x d x h) mm: 410x180x30
Operating Temperature °C: -10 to +55
